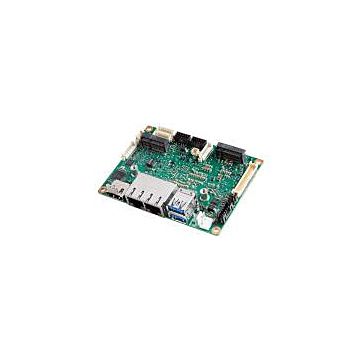

MIO-2363
Tuotenro
MIO-2363-xx
Toimitusaika 21-30pv
Intel Atom x6000E Series PICO-ITX SBC
- Intel Atom x6000E Series
- Onboard LPDDR4x up to 8GB and EMMC up to 128GB
- Support 12-24V wide voltage range -40~85°C operating temperature
- 2x GbE LAN, 2x USB3.2, 2x RS-232/422/485, I2C
- M.2 E-Key, M.2 B-Key for SATA storage and option to support RS-232 module
- Support iManager & Software APIs, WISE-DeviceOn, and EdgeAI Suite
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| Processor | Intel® x6413E 1.5Ghz 4-Core , 9W Intel® x6425E 2.0Ghz 4-Core , 12W |
| Integrated Graphics | Intel UHD Graphics for 10th Gen |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | M.2 B-Key 2242 (SATA) 64GB eMMC |
| Storage Support | |
| Memory | LPDDR4, 4GB/8GB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.1 | - |
| USB 3.2 | 2 x USB3.2 |
| Serial | 2 x RS-232/422/485 |
| Video | LVDS + HDMI |
| Ethernet | 2 x 10/100/1000 Mbps |
| Other Ports | 1 x GPIO 8bit Audio |
| Expansion | |
| Expansion Interface | 1 x M.2 B key (Type: 2242) 1 x M.2 E key (2230) |
| Operating System | |
| Operating System | Windows 10, Linux |
| Power | |
| DC Input / Source Voltage | 12V-24V DC Input |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.1kg |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Advantech |
|---|---|
| Form Factor | Pico-ITX |
