NA870
Tuotenro
NA870
Toimitusaika 21-30pv

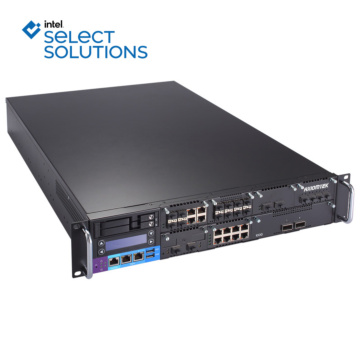

2U Rackmount Network Appliance Platform with Dual LGA4189 Socket 3rd Gen Intel® Xeon® Scalable Processors, Intel® C621A and up to 66 LAN
- Dual CPU sockets for 3rd gen Intel® Xeon® Scalable processors with 8 to 40 powerful cores, up to 270W
- 20 DDR4-3200 R-DIMM for up to 1280GB of memory
- 8 expandable LAN modules in support of 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
- Supports 100Gb Ethernet module with Intel® Ethernet controller E810 (AX93357/AX93358)
- First PCIe 4.0 ready platform
- Supports onboard IPMI (optional)
| System | |
| Processor | Dual LGA4189 socket 3rd gen Intel® Xeon® Scalable processors (Ice Lake-SP), up to 270W |
| Security Hardware | Onboard TPM 2.0 |
| Chipset | Intel® C621A |
| Storage | 2 x 2.5" SATA HDD hot-swappable 1 x M.2 Key M 2242/2280 (PCIe) 1 x M.2 Key M 2242/2280 (SATA) |
| Memory | 20 x DDR4-3200 R-DIMM, up to 1280GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2 x USB3.0 |
| Serial | |
| Video | 1 x VGA |
| Ethernet | 2 x GbE RJ-45 (Intel® i210) 4 x LAN module (optional), max. up to 34 LAN ports 8 x LAN module (optional), max. up to 66 LAN ports LAN Bypass function through latch relay (depends on LAN modules) |
| Other Ports | |
| Expansion | |
| Expansion Interface | 2 x PCIe x16 (optional, slot 1/ CPU0, slot 2/ CPU1) through riser card |
| Operating System | |
| Operating System | LINUX |
| Power | |
| Source Voltage | 230V AC Power input 1300W 2U redundant power supply |
| Operating Temperature | |
| Operating Temperature | 0°C to +40°C |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | FAN |
| Dimensions / Weight | |
| Weight (kg) | 14 kg/20 kg (redundant power) |
| Dimensions | 88 x 430 x 663 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Rack |
| Certification | |
| Certification | CE, FCC |
| Valmistaja / Brand | Axiomtek |
|---|
