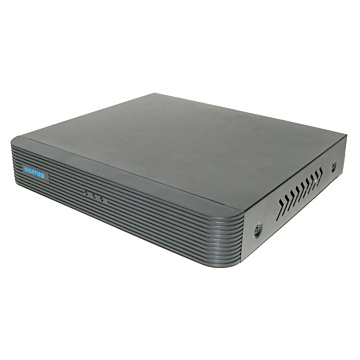

Niceview XVR Digitaalitallennin DVR516

Tuotenro
dvr516
Varastossa

244,00 EUR 196,77 EUR

  • 16-Kanavainen XVR-digitaalitallennin (DVR).
  • Tukee max 16kpl HD-TVI, CVI, AHD ja CVBS valvontakameraa.
  • Tukee max 8kpl IP-verkkokameraa.
  • Max 5MP (2560x1920) tallennustarkkuus.
  • Internet etäkatselu Windows ja Android laitteet.
  • RJ45/HDMI/VGA/USB/Audio/RS-485.
  • Verkkovirtalähde AC/DC12V mukana.
Muokkaa Niceview XVR Digitaalitallennin DVR516
Niceview XVR Digitaalitallennin DVR516   + 149,00 EUR 120,16 EUR

* Pakolliset kentät

Tuote
Niceview XVR Digitaalitallennin DVR516
Niceview XVR Digitaalitallennin DVR516

244,00 EUR 196,77 EUR

Yhteenveto
    Video/Audio Input
    Analog Video Input 16-ch, BNC
    IP Video Input 8-ch(only IP up to 24ch), each channel up to 8MP
    Supported Analog Camera Types Support AHD input:
    5MP@12fps
    4MP@15fps
    1080P@30fps
    720P@30fps
    Support TVI input:
    5MP@12fps
    4MP@15fps
    1080P@30fps
    720P@30fps
    Support CVI input:
    4MP@15fps
    1080P@30fps
    720P@30fps
    Support CVBS input
    Audio Input 1-ch, RCA
    Two-way Audio 1-ch, RCA
    Network
    Incoming Bandwidth 40Mbps
    Outgoing Bandwidth 64Mbps
    Remote Users 128
    Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    HDMI Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
    Audio Output 1-ch, RCA
    Synchronous Playback 16-ch
    Encoding
    Recording Resolution 5MP Lite/4MP Lite/1080P/720P/4CIF/CIF 5MP Lite/4MP Lite /1080P/720P/4CIF/CIF
    Recording Frame Rate Main stream:
    5MP Lite@6fps
    4MP Lite@8fps
    2MP Lite@15fps
    2MP@8fps
    720P@15fps
    Sub stream:
    D1@15fps(Max)
    Hard Disk
    SATA 1 SATA interface
    Capacity Up to 8TB for each HDD
    External Interface
    Network Interface 1RJ45 10M/100M self-adaptive Ethernet Interface
    USB Interface Rear panel:2 x USB2.0
    General
    Power Supply 12V DC
    Power Consumption: ≤ 8 W( without HDD )
    Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
    Dimensions(W×D×H) 255mm ×215mm× 42mm (10.0" × 8.5"×1.7")
    Weight (without HDD) ≤1.1 Kg ( 2.42lb )
