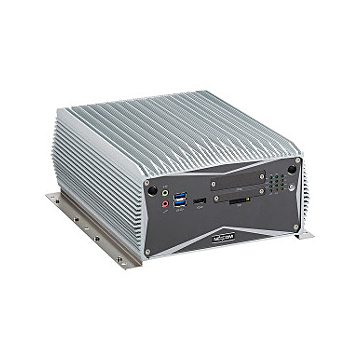

NISE 3700P2E

Toimitusaika 21-30pv
4th Generation Intel® Core™ i7/i5/i3 LGA Fanless System with one PCI & PCIEx4 Expansion
* Support 4th generation Intel® Core™ i7/i5/i3 LGA Socket Type Embedded Processor
* Intel® Q87 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-I, 1 xDVI-D, and 1x HDMI with Independent Display Support
* Three Intel® GbE LAN ports; Support WoL, Teaming and PXE
* 4 x USB 3.0, 4 x USB 2.0, 1 x RS232 and 2 x RS232/422/485 with auto flow control
* 2 x internal Mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* 1 x External CFast socket and 1x SIM card socket
* Support +9V to 30VDC input; ATX power mode
* 1 x PCI & PCIe x4 expansion
Pakkaus sisältää
NISE 3700P2E
*Core i5-4590T, 4-Core, 2.0GHz, 6M Cache
Processor Core i5-4590T, 4-Core, 2.0GHz, 6M Cache
CPU Performance
Security Hardware
Chipset Intel Q87 PCH
Storage 1 x 2.5" HDD (SATA 3.0)
1 x CFast (SATA 3.0)
1 x mSATA (internal Mini-PCIe socket)
Storage Support
Memory 2x DDR3 SO-DIMM socket, supports up to 8GB DDR3, non-ecc
Graphics 1 x DVI-D port
1 x DVI-I port
1 x HDMI
I/O Ports
USB 2.0 4 x USB 2.0
USB 3.0 2 x USB 3.0
Serial 2 x RS-232/422/485
1 x RS-232
Video 1 x DVI-D port
1 x DVI-I port
1 x HDMI
Ethernet 3 x Intel® I210IT GbE LAN Ports
Other Ports 1x Line-out and 1x Mic-in
Expansion Interface 1x PCIex4 Expansion Slot
- Add-on card length: 169mm max.
1x PCI Slot
- Add-on card length: 240mm max.
- Power consumption: 10W/slot max.
2x miniPCIe socket
1x SIM Card holder
Operating System
Operating System Windows 7
DC Input / Source Voltage 9-30V DC Input in system
230V AC adapter
Operating Temperature
Operating Temperature Operating Temperature -5°C to 50°C, with Wide-Temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.0kg
Dimensions 215 mm(W) x 272mm (D) x 114mm
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Extra Features
Certification CE
