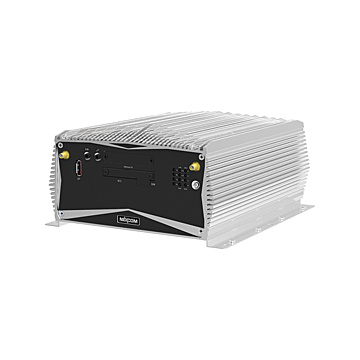

NISE 3800P2E

Toimitusaika 21-30pv
6th generation Intel Core i7/i5/i3 fanless system with one PCI and one PCIe x4 expansion
* Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
Intel® Q170 PCH
* Support 1 x 2.5" SATA HDD
* 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
* Three Intel® GbE LAN ports; support WoL, teaming and PXE
* 1 x External M.2 socket and 1 x SIM card socket
* 4 x USB 3.0, 2 x USB 2.0, 2 x RS232/422/485 with auto flow control
* 2 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus
* Support +9V to 30VDC input; ATX power mode
* 2 x PCI or PCIe x4 expansions
Processor -Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache
-Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache
-Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache
CPU Performance
Security Hardware
Chipset Intel Q170 PCH
Storage 1 x M.2 (SATA 3.0)
1 x mSATA (SATA 3 0)
1 x 2.5" HDD (SATA 3.0
Storage Support
Memory 2x DDR4 SO-DIMM socket, supports up to 16GB DDR4, non-ecc
Graphics 1 x DVI-D
1 x HDMI
1 x DisplayPort
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 4 x USB 3.0
Serial 2 x RS-232/422/485
Video 1 x DVI-D port
1 x DVI-I port
1 x HDMI
Ethernet 3 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
Other Ports 1x Line-out and 1x Mic-in
Expansion Interface 1x PCIex4 Expansion Slot
- Add-on card length: 169mm max.
1x PCI Slot
- Add-on card length: 240mm max.
- Power consumption: 10W/slot max.
2x miniPCIe socket
1x SIM Card holder
Operating System
Operating System Windows 7/ Windows 10
DC Input / Source Voltage 9-30V DC Input in system
230V AC adapter
Operating Temperature
Operating Temperature Operating Temperature -5°C to 50°C, with Wide-Temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.0kg
Dimensions 215 mm(W) x 272mm (D) x 114mm (H)
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Extra Features
Certification CE
