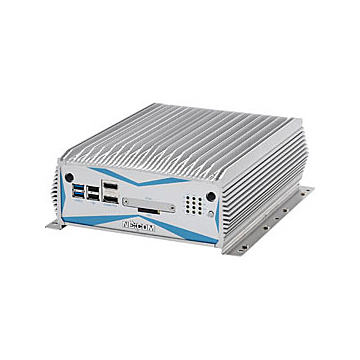

NISE 3640M
Tuotenro
nise3640m
Toimitusaika 21-30pv
Medical Grade 3rd Generation Intel® Core i7 Fanless System, EN60601, 4x Gbe LAN, 2x DP, VGA, DVI-D, 5x USB, 6x RS-232
Ominaisuudet
* OnBoard 3rd generation Intel® Core i7 BGA processor
* Mobile Intel® QM77 PCH
* Support 1x 2.5" SATA HDD or 2x SATA DOM
* 2x Display Port; 1x VGA; 1x DVI-D; 2x USB3.0; 2x USB2.0
* 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE
* 2x DB9 for RS232/422/485; 1x DB44 Serial Port for 4x RS232
* 1x internal Mini-PCIe socket supports optional Wi-Fi or 3.5G module
* 1x CFast socket; 1xSIM card socket;
* Support +24VDC input; Support ATX Power mode
* TUV/RH Certificate: EN60601-1:2006
* Mobile Intel® QM77 PCH
* Support 1x 2.5" SATA HDD or 2x SATA DOM
* 2x Display Port; 1x VGA; 1x DVI-D; 2x USB3.0; 2x USB2.0
* 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE
* 2x DB9 for RS232/422/485; 1x DB44 Serial Port for 4x RS232
* 1x internal Mini-PCIe socket supports optional Wi-Fi or 3.5G module
* 1x CFast socket; 1xSIM card socket;
* Support +24VDC input; Support ATX Power mode
* TUV/RH Certificate: EN60601-1:2006
Pakkaus sisältää
NISE 3640M
*1.7Ghz Intel Core i7-3517UE
*4GB RAM
*1.7Ghz Intel Core i7-3517UE
*4GB RAM
Spesifikaatiot
System | |
Processor | 1.7Ghz Intel Core i7-3517UE |
CPU Performance | |
Security Hardware | |
Chipset | Intel® QM77 PCH |
Storage | 1x 2.5" SATA HDD 2x SATA DOM (support 90°C horizontal type only) 1x CFast socket |
Storage Support | |
Memory | 2x DDR3/DDR3L SO-DIMM, supports up to 8GB DDR3/DDR3L |
Graphics | 1 x VGA 1x DVI-D 2x Display Port |
I/O Ports | |
USB 2.0 | 2 x USB 2.0 |
USB 3.0 | 2 x USB 3.0 |
Serial | 2 x RS-232/422/485 4 x RS-232 |
Video | 1 x VGA 1 x DVI-I 1 x HDMI |
Ethernet | 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE |
Other Ports | 1x Line-out and 1x Mic-in 1 x PS/2 for Keyboard / Mouse 1x Potential Equalization Connector (M6 Type) |
Expansion | |
Expansion Interface | 1 x PCIe x4 2 x PCI Express Mini Card 1 x External SIM card holder |
Operating System | |
Operating System | Win XP / Windows 7 |
Power | |
DC Input / Source Voltage | 24V DC Input in system 230V AC adapter |
Operating Temperature | |
Operating Temperature | Operating Temperature -20°C to 45°C, with Wide-Temp SSD |
Humidity Range | 10% ~ 90%, non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | Passive - Fanless |
Dimensions / Weight | |
Weight (kg) | 4.0kg |
Dimensions | 215mm (W) x 272mm (D) x 93mm (H) |
Enclosure | |
Bezel | |
Material | Aluminum / Steel |
Mounting | Desk/Wall mounting |
Peripherals & Devices | |
Accessories | |
Extra Features | |
Certification | |
Certification | CE , TUV/RH Certificate: EN60601-1:2006 |
