NAVPIXEL NPD1268

Tuotenro
NPD1268
Toimitusaika 21-30pv

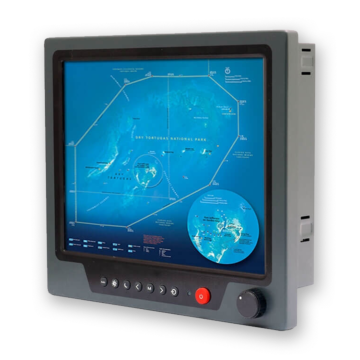

12.1" IP65 Sunlight Readable PCT Multi-Touch Marine Display

  • 12.1" sunlight readable, high brightness (1,600 nits) LCD
  • Advanced Optical Bonding (AOT)
  • High shock & vibration resistance
  • Projected capacitive multi-touch support
  • IP65 waterproof (front)
  • BV Rule IACES‐E10 certified; IEC 60945 compliant
Display
Screen Size 12" TFT LCD
Screen Resolution 1024x768
Display Ratio 4 ::3
Contrast Ratio 700 ::1
Brightness 1600 nits
Viewing Angle 160°(H),160°(V)
Number of Colors 262k
Touch Screen
Touchscreen PCAP
I/O Ports
Video 1x VGA
1x DVI-D
3x Composite
Other Ports USB &RS232 Touch
Operating System
Operating System
Power
DC Input / Source Voltage 9-36V DC

Multimedia

Operating Temperature
Operating Temperature -10ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 2.5 kg
Dimensions 316 x 227 x 56mm
Enclosure
Bezel Rugged SPCC Chassis
Material
Mounting Panel VESA
Protection IP65 Front
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
Lisätietoja
Näytön koko12.1"
Näytön signaali (input)VGA, DVI-D
