NAVPIXEL NPD2118

Tuotenro
NPD2118-ETAW
Toimitusaika 21-30pv

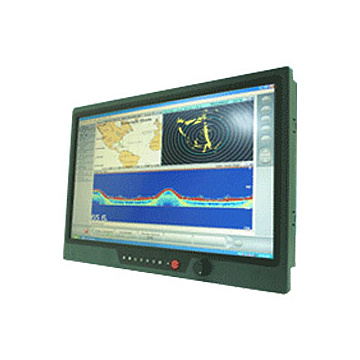

21.5" IP65 Sunlight Readable PCT Multi-Touch Marine Display

  • 21.5" sunlight readable, high brightness (1,600 nits) LCD
  • Advanced Optical Bonding (AOT)
  • High shock & vibration resistance
  • Projected capacitive multi-touch support
  • IP65 waterproof (front)
  • Picture-In-Picture, 3 stages (Child, split and wide screen)
  • BV Rule IACES‐E10 certified; IEC 60945 compliant
Display
Screen Size 21.5" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16 ::9
Contrast Ratio 1100 ::1
Brightness 1600 nits
Viewing Angle 170°(H),160°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen Protective Glass / 5-wire Resistive/PCAP
I/O Ports
Video 2x VGA
2x DVI-D
3x Composite
Other Ports USB &RS232 Touch
Operating System
Operating System
Power
DC Input / Source Voltage 9-36V DC

Multimedia

Operating Temperature
Operating Temperature -10ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 6.0 kg
Dimensions 557 x 383 x 57mm
Enclosure
Bezel Rugged SPCC Chassis
Material
Mounting Panel VESA
Protection IP65 Front
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
Lisätietoja
Näytön koko21.5"
Näytön signaali (input)VGA, DVI-D, Composite Video (RCA)
