NWDisplay121-R0

Tuotenro
NWDisplay121-R0
Toimitusaika 21-30pv

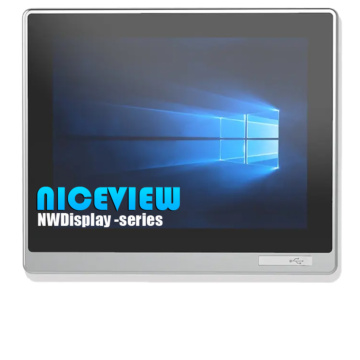

12.1” TFT Industrial Touch Monitor (PCAP), HDMI, DVI, VGA, 9-36V DC

  • Vivid graphics performance & picture quality
  • Front & Back cover aluminium magnesium alloy
  • Front IP65, Backside IP20
  • Multi-point capasitive touch, PCAP
  • High Reliable components for 24/7 usage
  • Versatile mounting options
Display
Screen Size 12.1" TFT LCD
Screen Resolution 1024x768
Display Ratio 4 ::3
Contrast Ratio 800 ::1
Brightness 350 nits
Viewing Angle 170 L/R/U/D
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
  Resistive (Single touch)
  Protective Glass (non-touch)
I/O Ports
Standard configuration
(R0-version)
HDMI
DVI
VGA
USB-Input (touch)
2x USB-Output
9-36V DC input
NW-Link4
(R2-version)

RJ-45 NWLink4 receiver
4x USB-Output
24V DC Input
Operating System
Operating System Windows 10 /Windows11 / LINUX
Power
DC Input / Source Voltage +9V-36VDC
1 x Terminal block (Standard)
  24V DC
1 x Terminal block (NWLink4)
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature -20ºC to 70ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 3.1 kg
Dimensions 306 x 259 x 46 mm
Enclosure
Bezel IP65 Front
Material Aluminum
Mounting Panel/VESA
Certification
Certification CE
Lisätietoja
Näytön koko12.1"
Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
