NWDisplay185-R2

Tuotenro
NWDisplay185-R2
Toimitusaika 21-30pv

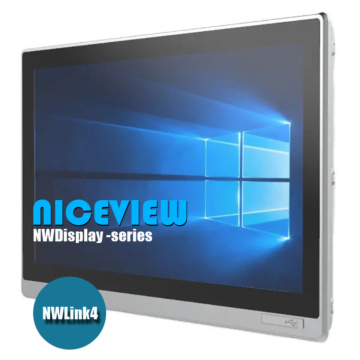

18.5” HD TFT Industrial Touch Monitor (PCAP), NWLink4, DVI, USB, 24V DC

  • Vivid graphics performance & picture quality
  • Front & Back cover aluminium magnesium alloy
  • Front IP65, Backside IP20
  • Multi-point capasitive touch, PCAP
  • High Reliable components for 24/7 usage
  • Versatile mounting options
Display
Screen Size 18.5" TFT LCD
Screen Resolution 1366x768
Display Ratio 16 ::09
Contrast Ratio 1000 ::1
Brightness 250 nits
Viewing Angle 170 L/R/U/D
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
Standard configuration
(R0-version)
HDMI
DVI
VGA
USB-Input (touch)
2x USB-Output
9-36V DC input
NW-Link4
(R2-version)

RJ-45 NWLink4 receiver
4x USB-Output
24V DC Input
Operating System
Operating System Windows 10 /Windows11 / LINUX
Power
DC Input / Source Voltage +9V-36VDC
1 x Terminal block (Standard)

24V DC
1 x Terminal block (NWLink4)
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 5.3 kg
Dimensions 463 x 303 x 54 mm
Enclosure
Bezel IP65 Front
Material Aluminum
Mounting Panel/VESA
Certification
Certification CE
Lisätietoja
Näytön koko18.5"
Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
Näytön signaali (input)NWLink4
