NWPanel-101
Tuotenro
NWPanel-101
Toimitusaika 21-30pv

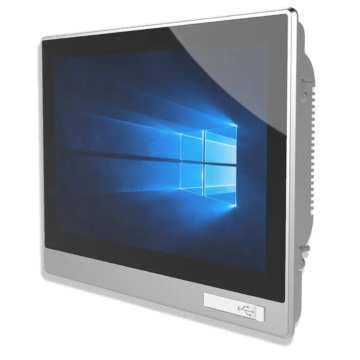

10.1” Embedded Industrial Fanless Panel PC
- Vivid graphics performance & picture quality
- Front & Back cover aluminium magnesium alloy
- Front IP65, Backside IP20
- Multi-point capasitive touch, PCAP
- High Reliable components for 24/7 usage
- Versatile mounting options
| System | |
| Processor | 7th Gen Intel Core i3/i5/i7 |
| CPU Performance | |
| Security Hardware | - |
| Chipset | SoC |
| Storage | 1 x 2.5” SATA HDD/SSD 1 x mSATA |
| Memory | DDR4-2133, max 32GB |
| Display | |
| Screen Size | 10.1" TFT LCD |
| Screen Resolution | 1280x800 |
| Display Ratio | 16 ::9 |
| Contrast Ratio | 800::1 |
| Brightness | 350 nits |
| Viewing Angle | 170degree L / R / U / D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) Resistive (Single-touch) Protective Glass (Non-touch) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | 1 x Audio Line-out 1 x Remote power switch |
| Operating System | |
| Operating System | Windows 10 / LINUX |
| Power | |
| DC Input / Source Voltage | +9V-36VDC 1 x Terminal block |
| Power Management | |
| Expansion Slots | |
| 1 x Full-size PCI-Express Mini Card slot | |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | -20ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.1 kg |
| Dimensions | 306 x 259 x 58 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Aluminum |
| Mounting | Panel , Wall, Desktop, VESA |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 10.1" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Kaby Lake (7th 8th Gen Core i3/i5i7/Celeron) |
