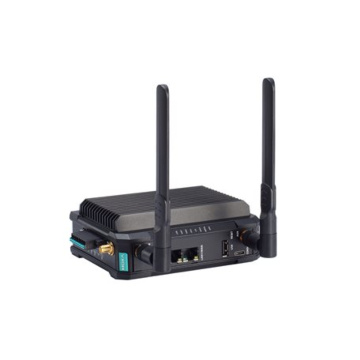

OnCell G4302-LTE4-EU
Tuotenro
OnCell_G4302-LTE4-EU
Toimitusaika 21-30pv
2-port industrial LTE Cat. 4 secure cellular routers
- Integrated LTE Cat. 4 module with US/EU/APAC band support
- Power management support for wake-up time scheduling
- Cellular link redundancy with dual-SIM GuaranLink support
- Supports WAN redundancy between cellular and Ethernet
- Precise GNSS for location-based applications
- Rugged and compact design for harsh environments
- Compact size and smart LED design for easier installation and troubleshooting
- Developed according to IEC 62443-4-2 with Secure Boot
- Visualize OT security with the MXsecurity management software
| Cellular Interface | |
| Cellular Standards | LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM |
| LTE Data Rate | 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL |
| Band Options (EU) | LTE B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) /
B8 (900 MHz) / B20 (800 MHz) / B28 (700 MHz) UMTS/HSPA B1 (2100 MHz) / B8 (900 MHz) GSM/GPRS/EDGE 900 MHz / 1800 Mhz |
| No. of SIMs | 2 Push-eject tray type |
| SIM Format | Nano SIM |
| Cellular Antenna Connector | 2 SMA female |
| Ethernet Interface | |
| 10/100/1000BaseT(X) | 2 |
| RJ-45 connector | |
| GNSS Interface | |
| GNSS Bands | GPS (1575.42 MHz) GLONASS (1597.52 MHz) Galileo (1575.42 MHz) BeiDou (1561.098 Mhz) |
| GNSS Antenna | 1 SMA female |
| Input/Output interface | |
| Alarm Contact | 1 Relay output with current carrying capacity of 1 A @ 24 VDC |
| Analog Input | 1 |
| Digital Inputs | -30 to +3 V for state 0 +13 to +30 V for state 1 |
| Buttons | Reset button |
| USB Interface | |
| Type | 1x USB Type A, 2.0 |
| Serial Interface | |
| Type | 1x DB9 male, RS-232/422/485 |
| Power | |
| Input | 12-48V DC |
| Physical | |
| Housing | Metal IP40 |
| Dimensions | 125 x 46 x 100mm |
| Installation | Din-rail, Wall-mounting |
| Environmental | |
| Operating temp | -10 ..55C |
| Storage temp | -40 ..85C |
| Standards | |
| EMC | EN 55032/35 EN 61000-6-2/-6-4 |
| Hazardous Locations | CCCEx IECEx ATEX Class I Division 2 |
| Road Vehicles | E mark E1 |
