P115-ADL-TRA
Tuotenro
P115-ADL-TRA
Toimitusaika 21-30pv
0,00 EUR

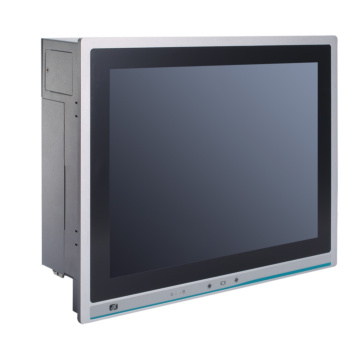

15" XGA TFT Expandable Industrial Touch Panel Computer with 12th Gen Intel® Core™ i7/i5/i3, Celeron® or Pentium® Processor and PCIe Slot
- 15” XGA LCD with 300nits of brightness
- 5-wire resistive touch
- Supports one 2.5” SATA HDD/SSD
- HDMI, DisplayPort and VGA output available for 2nd display
- 1 flexible I/O window
- Supports WLAN module and antenna (optional)
- Supports 2 USB 3.2, 4 USB 2.0, and 2 COM (up to 4 COM with flexible I/O)
- TPM 2.0 onboard
- Supports panel, VESA and wall mount kit
- 0°C to 50°C operating temperature
System | |
Processor | LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3, Celeron® or Pentium® processor (Tj 100°C) TDP 35W |
CPU Performance | |
Security Hardware | TPM2.0 |
Chipset | Intel H610 |
Storage | 1 x SATA SSD |
Memory | 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB |
Display | |
Screen Size | 15" TFT LCD |
Screen Resolution | 1024x768 |
Display Ratio | 4 ::3 |
Contrast Ratio | |
Brightness | 300 nits |
Viewing Angle | -88~88(H); -88~88(V) |
Number of Colors | |
Touch Screen | |
Touchscreen | 5-wire Resistive touch (single touch) |
I/O Ports | |
USB 2.0 | 4x USB 2.0 |
USB 3.0 | 2x USB 3.2 Gen1 |
Serial | 1x RS-232 1x RS-232/422/485 |
Video | 1 x HDMI 1 x VGA 1 x DisplayPort |
Ethernet | 1 x RJ45 2.5GbE 1 x RJ45 GbE |
Other Ports | Audio Line-out x 1 1 x AC socket 1 x Remote power switch |
Operating System | |
Operating System | Windows 10 / Windows 11 |
Power | |
DC Input / Source Voltage | 230V AC |
Power Management | |
Expansion Slots | |
1 x M.2 Key E 2230 (PCIe/USB 2.0 signal) 1 x Full-size PCIe Mini Card slot (PCIe/USB signal + nano SIM slot) 1 x PCIe x16 slot 1 x Flexible I/O window (optional) |
|
Multimedia | |
Integrated Speakers | - |
Operating Temperature | |
Operating Temperature | 0ºC to 50ºC |
Humidity Range | 10% to 90% non-condensing |
Cooling System / Thermal Solution | |
Thermal Solution | CPU FAN |
Dimensions / Weight | |
Weight (kg) | 6,3 kg |
Dimensions | 378.3 x 88.8 x 310.3 mm |
Enclosure | |
Bezel | |
Material | Aluminum |
Mounting | Panel , VESA |
Note * | |
Peripherals & Devices | |
Accessories | |
Extra Features | |
Certification | |
Certification | CE, EN 61000-6-2, EN 61000-6-4 UKCA FCC Class A |
Valmistaja / Brand | Axiomtek |
---|---|
Jäähdytys | CPU tuuletin |
Näytön koko | 15" |
Kosketusominaisuuden tyyppi | Resistive |
CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
