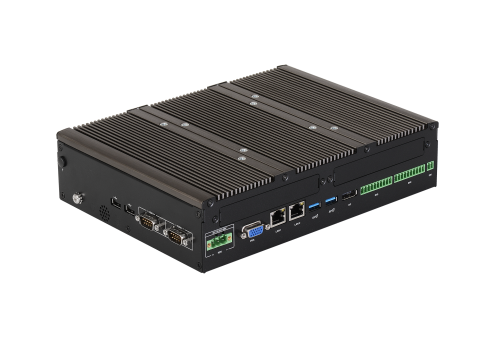

P2102E CDS PC Module, i5

Toimitusaika 21-30pv
Tuotenro
P2102E-i5
  • Onboard 8th Generation Intel® Core™ U Series Processor
  • 2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
  • Supports Triple Independent Display
  • Integrated USB 3.2 Gen 2 supports up to 10Gbps
  • M.2 E Key Socket for Wireless Module or Intel CRF Module
  • Supports Ignition Sensing Function (IGN) (with optional CFM module)
  • Supports 2x PoE+ Function (with optional CFM module)
  • 1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm (with optional riser card)
  • Supports CDS Technology for Convertible Panel PC
  • Built-in Two 2W Internal Speakers
System
Processor - Intel® Core™ i5-8365UE Quad Core Processor
- Intel® Core™ i3-8145UE Dual Core Processor
CPU Performance
Security Hardware
Chipset SoC
Storage 2x 2.5” SATA3 HDD/SSD Bay
Memory 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB
Audio Realtek ALC888-GR
High Definition Audio
Graphics Integrated Intel® UHD Graphics 620
Triple independent display with 1x VGA, 1x DP and 1x CDS interface
I/O Ports
USB 2.0 2 x USB2.0
USB 3.0 3x USB 3.2
Serial 4x RS-232/422/485
with Auto Flow Control (Support 5V/12V), DB9
Video 1x Display Port (4096 x 2304)
1x VGA
1x CDS Interface
Ethernet 2x GbE LAN , RJ-45
Other Ports Mic-in/Speaker out
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
1x Remote Power On/Off Connector
Expansion
Expansion Interface 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card)
1x 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
2x CFM interface
2x Full-size Mini-PCIe Sockets
1x SIM Socket
2x Universal I/O Bracket
4x Antenna hole
1x Convertible Display System (CDS) Interface
Operating System
Operating System Windows® 10
Power
DC Input / Source Voltage Power Input Voltage 9~48VDC
Operating Temperature
Operating Temperature -40°C ~ +70°C with W.T. SSD, Memory
Shock/Vibration Shock: Operating, 50 Grms, Half-sine 11 ms Duration
Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 2.7 kg
Dimensions 254.5 x 190 x 61 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Display module with CDS
Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE
Lisätietoja
Jäähdytys Fanless
