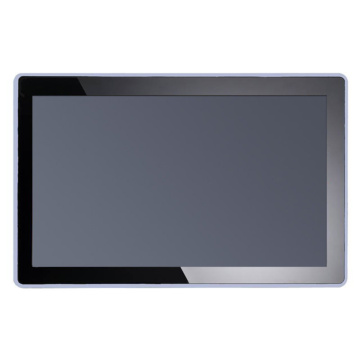

P624-C-DC 23.8" Touch monitor
Tuotenro
P624-C-DC
Toimitusaika 21-30pv
23.8" FHD TFT Widescreen Industrial LCD Monitor
- 23.8" FHD TFT LCD with projective capacitive multi-touch
- 450 nits of brightness
- NEMA 4/12 (IP65) compliant flat panel monitor
- Supports panel mount, wall mount, and VESA mount
- 24 VDC power input
- VGA, HDMI, and DisplayPort with multi-signal inputs
| Display | |
| Screen Size | 23.8" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 1000 ::1 |
| Brightness | 450 nits |
| Viewing Angle | 178 L/R/U/D |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Standard configuration |
HDMI |
| DisplayPort | |
| VGA | |
| USB-Input (touch) | |
| DC input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +24V DC 36W |
| Multimedia | |
| Integrated Speakers | 2x Speaker |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.3kg |
| Dimensions | 588 x 370 x 54 mm |
| Enclosure | |
| Bezel | - |
| Material | - |
| Mounting | Panel mount Wall mount Desktop stand VESA mount |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Näytön koko | 24" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| Näytön signaali (input) | VGA, HDMI, Display Port |
