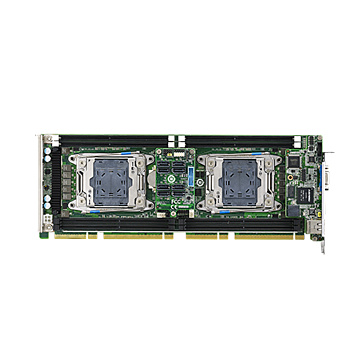

PCE-9228
Tuotenro
PCE-9228G2I-00A1E
Toimitusaika 21-30pv
Dual LGA 2011-R3 Intel Xeon® E5-2600v3 SHB Server Board with DDR4, DDR4/SATA3.0/USB3.0/Dual GbE
- Supports Dual Intel Xeon E5-2600v3 LGA2011 processors with C612
- Quad Channel ECC-REG DDR4 1333/1600/1867/2133 up to 256 GB
- Supports PCIE 3.0, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10
- Supports out-of-band remote management IPMI2.0(I sku)
| Form Factor | |
| Form Factor | PICMG1.3 , Dual Slot |
| System | |
| Processor | Intel Xeon E5-2600(v3) dual processor (TDP up to 120W per CPU) |
| Security Hardware | |
| Chipset | Intel® C612 chipset |
| Storage | 8 x SATA-600 (support RAID 0,1,5,10) |
| Memory | 8 x ECC-REG DDR4-2133/1866 Mhz DIMM, up to 256GB |
| Graphics | Aspeed AST2400/1400 64MB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB3.0 (pin hearder) 2 x USB3.0 |
| USB 3.1 | |
| Serial | 1 x pin header |
| Video | 1 x VGA |
| Ethernet | 3 x 10/100/1000 Mbps Ethernet (2x Intel® i210, 1x IPMI function) |
| Other Ports | DIO Audio MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | PICMG1.3 : 1 x PCIex16 1 x PCIex4 4 x PCI |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | Standard 12V ATX power |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 1.5kg |
| Dimensions | 338mm x 122mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Advantech |
|---|---|
| Socket | LGA 2011 |
| Form Factor | PICMG 1.3 |
