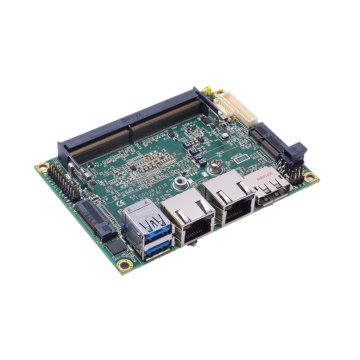

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort, LVDS and 2 GbE LAN
Form Factor
Form Factor PICO ITX

Processor 7th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard
Integrated Graphics Yes
Security Hardware
Chipset SoC
Storage 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 optional)
1 x SATA-600
Storage Support
Memory 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
Graphics Intel HD graphics Integrated
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 2 x USB 3.0
Serial 2 x RS-232/422/485
Video 1 x LVDS
1 x DisplayPort
Ethernet 2 x 10/100/1000 Mbps (ntel® i219-LM & Intel® i211-AT)
Other Ports DIO
Expansion Interface 1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30)
Operating System
Operating System Windows 10
DC Input / Source Voltage 2 x 2-pin connector
+12 VDC-in only
AT Auto Power On function supported
Operating Temperature
Operating Temperature Operating Temperature -20°C to 60°C
Humidity Range 10% ~ 90%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 100 x 72 mm
Certification CE
