PM-2134-100
Tuotenro
PM-2134-100
Toimitusaika 14-22pv

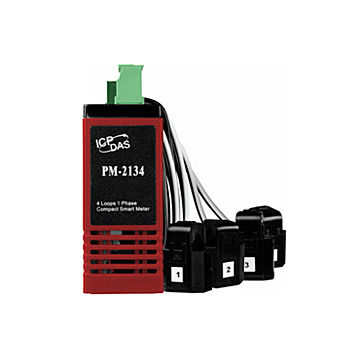

4 Loops 1 Phase Compact Smart Power Meter, 0-60A
Ominaisuudet
*True RMS energy and power parameters measurement in compact
size
* Easy wiring for on-line installation
* RS-485 communication supported Modbus protocol
* Wh accuracy better than 1% (PF=1)
* With wired clip-on CT (various types support input current up to
200A)
* LED pulse output
size
* Easy wiring for on-line installation
* RS-485 communication supported Modbus protocol
* Wh accuracy better than 1% (PF=1)
* With wired clip-on CT (various types support input current up to
200A)
* LED pulse output
Spesifikaatiot
Input voltage:
10 - 300 V
Power Parameters Measures:
V1, V1, V2, V2
I 1, I 2, I 3, I 4
kW1, kW2, kW3, kW4
kVA1, kVA2, kVA3, kVA4
kvar1, kvar2, kvar3, kvar4
PF1, PF2, PF3, PF4
kWh1, kWh2, kWh3, kWh4
kVAh1, kVAh2, kVAh3, kVAh4
kvarh1, kvarh2, kvarh3, kvarh4
Communication:
Protocol: Modbus-RTU
RS485, half duplex isolated
Baud Rate: 9600, 19200(default), 38400
Protocol:CAN bus
Baud Rate: 125 k(default) : 250 k: 500 k : 1000 k
10 - 300 V
Power Parameters Measures:
V1, V1, V2, V2
I 1, I 2, I 3, I 4
kW1, kW2, kW3, kW4
kVA1, kVA2, kVA3, kVA4
kvar1, kvar2, kvar3, kvar4
PF1, PF2, PF3, PF4
kWh1, kWh2, kWh3, kWh4
kVAh1, kVAh2, kVAh3, kVAh4
kvarh1, kvarh2, kvarh3, kvarh4
Communication:
Protocol: Modbus-RTU
RS485, half duplex isolated
Baud Rate: 9600, 19200(default), 38400
Protocol:CAN bus
Baud Rate: 125 k(default) : 250 k: 500 k : 1000 k
