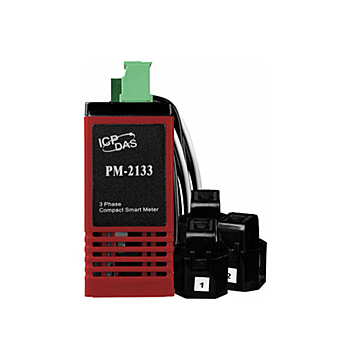

PM-2133-100

*True RMS energy and power parameters measurement in compact
size
* Easy wiring for on-line installation
* RS-485 communication supported Modbus protocol
* Support CAN baud-rate: 125 k, 250 k, 500 k, 1 M bps
* Wh accuracy better than 1% (PF=1)
* With wired clip-on CT (various types support input current up to
200A)
* LED pulse output

Input voltage:
10 - 500 V

Power Parameters Measures:
VA, VB, VC, Vave
I A, I B,I C, I ave
kWA, kWB, kWC, kWtot
kVAA, kVAB, kVAC, kVAtot
kvarA, kvarB, kvarC, kvartot
PFA, PFB, PFC, PFtot
kWhA , kWhB, kWhC, kWhtot
kVAhA , kVAhB, kVAhC, kVAhtot
kvarhA , kvarhB, kvarhC, kvarhtot

Communication:
Protocol: Modbus-RTU
RS485, half duplex isolated
Baud Rate: 9600, 19200(default), 38400

Protocol:CAN bus
Baud Rate: 125 k(default) : 250 k: 500 k : 1000 k
