PPC-315 EHL

Tuotenro
PPC-315-EHL
Toimitusaika 21-30pv

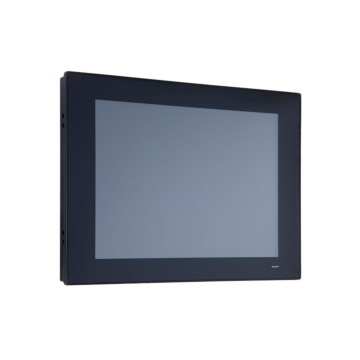

15" Fanless Panel PC with Intel® Celeron® J6412 Processor

  • Industrial-grade 15" XGA TFT LCD with 70K backlight lifetime
  • Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch control
  • Intel® Celeron® J6412 quad-core, 2.6 GHz, processor
  • Up to 32 GB DDR4 SDRAM
  • 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 2 x USB 3.0
  • Compact, fanless design with solid aluminum alloy enclosure and IP65-rated front panel
  • Supports E-key for wireless module
  • Supports expansion via M.2 slot
  • Supports Windows Embedded and Android OS
Muokkaa PPC-315 EHL
PPC-315 EHL

* Pakolliset kentät

Tuote
PPC-315 EHL
PPC-315 EHL

0,00 EUR

Yhteenveto
    System
    Processor Intel Celeron J6412


    Memory 1 x SDRAM, DDR4 max 32GB
    Chipset SoC
    Storage 1 x 2.5" SATA HDD Bay
    1 x M.2 M key for Storage, SATA
    Expansion 1 x M.2 E key for wireless, 2230


    Display
    Screen Size 15" TFT LCD
    Screen Resolution 1024*768
    Display Ratio
    Contrast Ratio 2000
    Brightness 300 nits
    Viewing Angle
    Number of Colors
    Touch Screen
    Touchscreen -Projected Capacitive (Multi-touch)
    -Resistive (Single touch)
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2x USB3.0
    Serial 1 x RS-232
    1 x RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ45 GbE
    Other Ports
    Operating System
    Operating System Windows 10, Linux , Android10
    Power
    DC Input / Source Voltage 12-30V DC
    Power Comsumption 37W
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 95% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 5 kg
    Dimensions 392mm x 314mm x 55mm
    Enclosure
    Protection IP65 Front
    Material
    Mounting Panel Mount, VESA


    Certification
    Certification CE / FCC
    Lisätietoja
    Jäähdytys Fanless
    Näytön koko 15"
    Kosketusominaisuuden tyyppi Projected Capasitive (PCAP)
