5G Modem Quectel RM510Q-GL
Tuotenro
RM510Q-GL
Toimitusaika 21-30pv
520,83 EUR 415,00 EUR

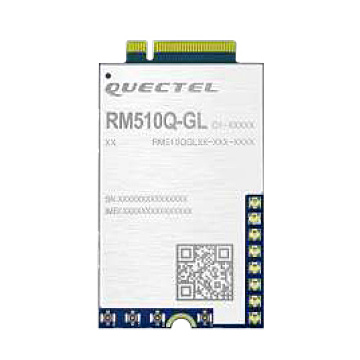

Quectel RM510Q-GL 5G M.2 Module
- Multi-Band 5G Sub-6 GHz & mmWave M.2 Module
- Max. downlink 4.5Gbps / 2.9Gbps uplink
- Extended temperature range of -40°C to +85°C
| System | |
| Form Factor | M.2 |
| Dimensions | 52.0*30.0*2.3 mm |
| Frequency Bands | |
| 5G NR | 3GPP Release 15 NSA/SA operation, Sub-6 GHz, mmWave |
| 5G NR NSA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79/n257①/n258①/ n260①/n261① |
| 5G NR SA | n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 |
| MIMO | DL: 4 × 4 on
n1/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79 UL: 2 × 2 on n41/n257/n258/n260/n261 |
| LTE | DL Cat 20 / UL Cat 18 |
| GNSS | GPS/GLONASS/BeiDou(Compass)/Galileo |
| Data Transfer | |
| mmWave | 7.5Gbps(DL)/2.9Gbps(UL) |
| Sub-6G | 5Gbps(DL)/600Mbps(UL) |
| LTE | 2Gbps(DL)/200Mbps(UL) |
| HSPA+ | - |
| Software Features | |
| Protocol | - |
| TLS | - |
| File System | - |
| FOTA | - |
| Android RIL | Android 6/7/8/9/10 |
| USB Driver | Microsoft Windows Win7/Win8/Win10/Linux/Android |
| MBIM | Win10 |
| NDIS | Linux/Win7/Win8/Win10 |
