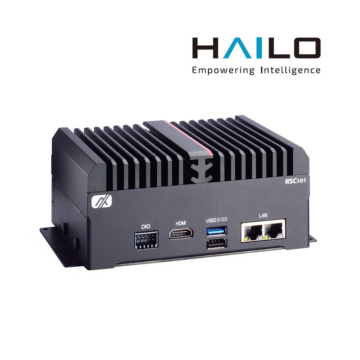

RSC101 Fanless Edge AI Vision System

Tuotenro
RSC101-H-x
Toimitusaika 21-30pv

Fanless Edge AI Vision System with Hailo-8™ Processor, HDMI, GbE LAN, COM, USB 3.2, DIO, and Wi-Fi/Bluetooth/5G/LTE Wireless Connection

  • Hailo-8™ AI processor, up to 26 TOPS
  • Palm size with high AI computing performance
  • Supports dual GbE LAN for cameras
  • Supports Wi-Fi/Bluetooth/5G/LTE wireless connection
  • Wide operating temperature from -10°C to +60°C
  • Wide voltage input from 12 to 24 VDC
  • Supports Windows 10 and Linux
  • Ideal for edge AI smart city applications
Muokkaa RSC101 Fanless Edge AI Vision System
RSC101-J6412

* Pakolliset kentät

Tuote
RSC101 Fanless Edge AI Vision System
RSC101 Fanless Edge AI Vision System

0,00 EUR

Yhteenveto
    System
    Processor Intel® Celeron® processor J6412/N6210
    GPU SoC
    Chipset SoC
    Storage 1 x M.2 Key B 2242 SSD slot (SATA3)
    Memory 1 x DDR4 SO-DIMM slot, up to 32GB
    AI Accelerator Hailo-8™ SoC, up to 26 TOPS
    I/O Ports
    USB 2.0 1 x USB 2.0
    USB 3.0 1x USB 3.2 Gen1
    Serial 1 x Wafer for RS-232/485
    Video 1 x HDMI 2.0 with 4K2K supported
    Ethernet 2 x 10/100/1000 Mbps Ethernet
    Other Ports 1 x 8-CH DI/DO
    Expansion
    Expansion Interface 1 x M.2 Key E 2230 for Wi-Fi/Bluetooth
    1 x M.2 Key B 3052 for 5G
    1 x SIM slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 12~24VDC
    Operating Temperature
    Operating Temperature
    -10°C to 70°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.3 kg
    Dimensions 150 x 111.0 x 71.7 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Wall mounting kit
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, FCC Class A
    Lisätietoja
    JäähdytysFanless
