SCD3685-I

Tuotenro
SCD3685-I
Toimitusaika 21-30pv

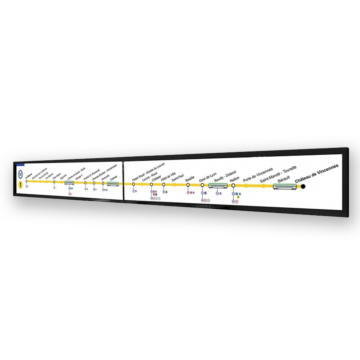

36.8” Resizing LCD,1000 nits LED backlight, 1920 x 358 ultra-wide aspect ratio 16:3

  • 36.8" Bar Display
  • Side-by-Side Ultra-Wide Screen (16 : 3)
  • Sunlight Readable, 1000nits
  • LED Backlight
  • Display Area: 1838.6(H)x171.4(V) mm
  • MTBF: 100,000 hours
Display
Screen Size 36.8" TFT LCD
Screen Resolution 1920x358
Display Ratio 16 ::3
Contrast Ratio 4500 ::1
Brightness 1000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 16.7M
Touch Screen
Touchscreen -
I/O Ports
Video

1x VGA
1x DVI-D
1x HDMI

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 230V AC

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 18 kg
Dimensions 1890.4 x 216 x 66.6mm
Enclosure
Bezel size
21.3/21.3/19.4/19.4
Material
Mounting VESA 300x180
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
Lisätietoja
Näytön signaali (input)VGA, DVI-D, HDMI
