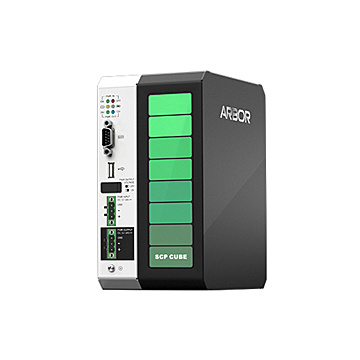

SCP CUBE 43

Toimitusaika 21-30pv
Tuotenro
SCP-43
613,80 EUR
New-Generation Supercapacitor Industrial Power Backup Solution,
60W/120sec
Ominaisuudet
* Designed for industrial box PC & panel PC
* Maintenance free supercapacitors
* Safe and reliable; no danger of fire or explosion
* No danger of overcharging
* Fully discharged for safety
* Environmentally friendly without hazardous materials
* Wide operating temperature range (-20°C to 70°C)
* Multi-function control utility
Spesifikaatiot
System
Chip High current supercap backup controller
I/O Ports
USB 2.0 1 x Type-A connector
COM 1 x COM with RS-232
Operating System
Operating System Windows® 10 (software for shutdown)
Power
Power Output DC 12V / 24V output with switch support
Power Input Power Input Voltage 12~28VDC
Operating Temperature
Operating Temperature -20°C ~ +70°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 2.2 kg
Dimensions 100 x 150 x 187.4 mm
Enclosure
Material Steel
Mounting Din rail
Peripherals & Devices
Accessories 1 x USB to USB cable, 1 x RS-232 DB9 to DB9 cable,
2 x 3-pin plug for terminal block
Certification
Certification CE
