SDC0FF0I

Tuotenro
SDC0FF0I
Toimitusaika 21-30pv

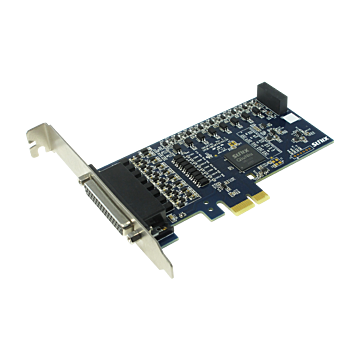

Industrial I/O Control PCIe Card 16+16-ch Isolated Digital I/O

  • Expands isolated eight (16) digital input channels with features for all channels.
    • Support both NPN & PNP devices
    • Support both dry and wet contact connections
    • With digital filter for noise reduction
    • Built-in 32-bit counter for all digital in channels
  • Expands isolated eight (16) NPN type digital output channels with initial value (Booting & Restart) protection.
  • Each channel built-in 2.5KV isolation protection for signal and power, allowing the input signals to be completely floated so as to prevent ground loops.
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Ultra low power consumption (<1.5W) design for green environment and industrial application.
  • High quality electronic components, low impedance and high stability ensure product quality and reliability.
Board
Interface PCI Express
Controller SUNIX QiuNiu UART Digital-I/O Controller
BUS PCI Express 1.0 x1
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge


Digital Input Communication
Type NPN & PNP
Channel 16-Channel
Dry Contact Logic Level 0: Open;
Logic Level 1: Close to GND
Wet Contact Logic Level 0: 0 to 3VDC;
Logic Level 1: 10 to 50VDC
Pin Define DI1~DI16, COM, GND
Counter 32-bit counter for all channel
Interrupt Mode Event trigger (Rising Edge, Falling Edge, Both modes) & polling for all channels
Noise Reduction Digital Filter


Digital Output Communication
Type NPN
Channel 16-Channel
Voltage Range 3.5 to 40VDC
Current 500mA per Channel
Pin Define DO1~DO16, PWR, GND
Initial Protection Initial Value Setup (Booting & Restart protection)
Lisätietoja
I/OMulti I/O
Valmistaja / BrandSunix
ConnectionPCIEx1
