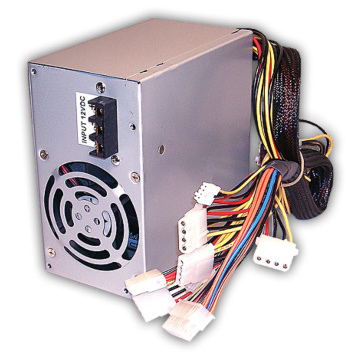

STC-24-450W DC-DC 24V ATX PS2 PSU
Tuotenro
STC-24450
Varastossa
450W DC-DC virtalähde. Standardin PS/2 kokoinen. DC 18-36V input. P4-tuki.
Ominaisuudet
400W DC-DC PS2 standard size Power Supply.
24V DC input.
* Wide DC Input Range (DC 18-36V)
* Design to meet ATX12V Standard
* Build-in Thermal Fan Speed Control
* Short circuit protection
* Over Voltage protection
Käyttökohteet:
*Industrial PC
*Car computing
*Telecom
*Marine
*Aerospace
Säästää auton akkua ja laturia pienentämällä tehohäviöitä verrattuna invertteriin.
24V DC input.
* Wide DC Input Range (DC 18-36V)
* Design to meet ATX12V Standard
* Build-in Thermal Fan Speed Control
* Short circuit protection
* Over Voltage protection
Käyttökohteet:
*Industrial PC
*Car computing
*Telecom
*Marine
*Aerospace
Säästää auton akkua ja laturia pienentämällä tehohäviöitä verrattuna invertteriin.
Pakkaus sisältää
1x SER450W DC-DC 24V ATX
Spesifikaatiot
ENVIRONMENTAL CONDITIONS:
● Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 (Two Ball Bearing mode)
● Operating Temperature: 0пїЅC ~ +60пїЅC
● Operating Humidity: 20%~85% RH. (Non condensing)
● Storage Temperature: -20пїЅC~+80пїЅC
● Storage Humidity: 10%~90% RH. (Non condensing)
● Operating Altitude: 10M Below Sea level and 3000M Above Sea level
DC INPUT CHARACTERISTICS:
● Input connector type 30A/ 300V UL Approved Gold plated 3-Pin Terminal 1.2t/3-Pin Terminal
● Input Current 30A/20A(max.) @Full Load & Low Line
● Inrush Current Less than 10A Cold start @25пїЅC ambient
DC OUTPUT CHARACTERISTICS:
OVERALL PERFORMANCE:
● Efficiency 70% typical @24V DC Full Load
● Power Good Signal TTL Compatible signal, on delay 100~500ms, off delay 1ms min
● Short Circuit Protection (SCP) All output equipped with SCP (shutdown and latch off)
● Over Power Protection (OPP) Peak power protected to 130%пїЅ10% of continuous rated power (shutdown and latch off)
● Over Voltage Protection (OVP) +5V, +12V & +3.3V
RELIABILITY:
● MTBF (Mean Time Between Failure): >70,000 hours @max. Load, 24V DC & 25пїЅC ambient
● Safety Standards: Meet UL60950 and TГјV EN60950
● EMI Compatibility (EMC) Standard: FCC Part 15 Class B, CISPER22 (EN55022) Class B (CE mark)
● Dielectric Withstand: Input to Output: 1500Vac for 1second
● Dielectric Withstand: Input to Frame ground: 1500Vac for 1second
● Leakage Current: <0.005mA @24VDC
Output Connector specific:
● ATX 24 Pin
● +24V(P4) 4 pin
● Peripheral 4 pin
● FDD 4 pin
● Serial ATX
● Process 8 pin
Standard Output Cable Length:
● 520mm
Power chassis Dimension:
● 140(L) x 150(W) x 86(H) mm
Net Weight:
● 2.3 kgs
Gross Weight:
● 2.6~ 3.3kgs
● Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 (Two Ball Bearing mode)
● Operating Temperature: 0пїЅC ~ +60пїЅC
● Operating Humidity: 20%~85% RH. (Non condensing)
● Storage Temperature: -20пїЅC~+80пїЅC
● Storage Humidity: 10%~90% RH. (Non condensing)
● Operating Altitude: 10M Below Sea level and 3000M Above Sea level
DC INPUT CHARACTERISTICS:
● Input connector type 30A/ 300V UL Approved Gold plated 3-Pin Terminal 1.2t/3-Pin Terminal
● Input Current 30A/20A(max.) @Full Load & Low Line
● Inrush Current Less than 10A Cold start @25пїЅC ambient
DC OUTPUT CHARACTERISTICS:
OVERALL PERFORMANCE:
● Efficiency 70% typical @24V DC Full Load
● Power Good Signal TTL Compatible signal, on delay 100~500ms, off delay 1ms min
● Short Circuit Protection (SCP) All output equipped with SCP (shutdown and latch off)
● Over Power Protection (OPP) Peak power protected to 130%пїЅ10% of continuous rated power (shutdown and latch off)
● Over Voltage Protection (OVP) +5V, +12V & +3.3V
RELIABILITY:
● MTBF (Mean Time Between Failure): >70,000 hours @max. Load, 24V DC & 25пїЅC ambient
● Safety Standards: Meet UL60950 and TГјV EN60950
● EMI Compatibility (EMC) Standard: FCC Part 15 Class B, CISPER22 (EN55022) Class B (CE mark)
● Dielectric Withstand: Input to Output: 1500Vac for 1second
● Dielectric Withstand: Input to Frame ground: 1500Vac for 1second
● Leakage Current: <0.005mA @24VDC
Output Connector specific:
● ATX 24 Pin
● +24V(P4) 4 pin
● Peripheral 4 pin
● FDD 4 pin
● Serial ATX
● Process 8 pin
Standard Output Cable Length:
● 520mm
Power chassis Dimension:
● 140(L) x 150(W) x 86(H) mm
Net Weight:
● 2.3 kgs
Gross Weight:
● 2.6~ 3.3kgs
Tyyppi | ATX PS2 |
---|---|
Sisääntulo jännite | 24V DC |
Ulostulojännite | ATX |
Teho | 450W |
Soveltuvuus | Sisäkäyttöön |
