SHB150RDGG-Q370
Tuotenro
SHB150RDGG-Q370
Toimitusaika 21-30pv

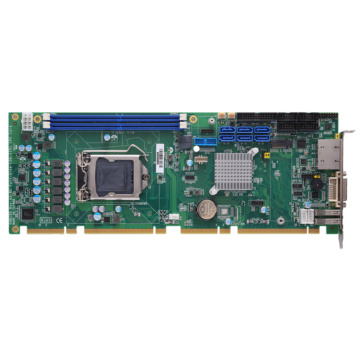

PICMG 1.3 Full-size CPU Card with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® Processor, Intel® Q370, SATA 3.0, USB 3.1 Gen1/Gen2, Dual LAN and DVI-I
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246),
- Pentium® or Celeron® processor (up to 95W)
- Intel® C246/Q370/H310 chipset
- 2 DDR4-2666/2400 Long-DIMM for up to 64GB of memory
- Supports Intel® AMT and vPro (C246/Q370)
- TPM 2.0 supported (optional)
- Supports M.2 Key M (C246/Q370)
| Form Factor | |
| Form Factor | PICMG1.3 Full-Size |
| System | |
| Processor | LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E (C246), Pentium® or Celeron® processor (up to 95W) |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® Q370 |
| Storage | M.2 Key M 2280, PCIe x4 signal (C246, Q370) C246/Q370: 6 x SATA-600, support RAID 0/1/5/10 |
| Memory | 2 x 288-pin 2666/2400 un-buffered Long-DIMM, up to 64GB |
| Graphics | Intel® integrated |
| I/O Ports | |
| USB 2.0 | 6 x USB 2.0 (2 ports onboard, 4 ports on SHB connector-C golden fingers) |
| USB 3.0 | |
| USB 3.1 | 2 x USB 3.1 Gen2 4 x USB 3.1 Gen1 |
| Serial | 2 x RS-232/422/485 2 x RS-232 |
| Video | 1 x DisplayPort++ (internal pin header) 1 x DVI-I |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | Audio, with optional AX93242 PS/2 MS/KB 1 x LPT |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x PCIe x4 4 x PCI (32bit) |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 1.0kg |
| Dimensions | 338 x 126 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA 1151 |
| Form Factor | PICMG 1.3 |
