SSD5745-I

Tuotenro
SSD5745-I
Toimitusaika 21-30pv

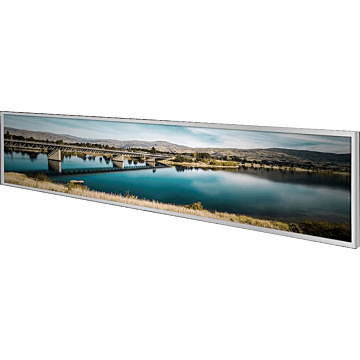

57.4” Resizing LCD,1000 nits LED backlight, 3840 x 807

  • 57.4" Sunlight readable, Public Information Display
  • Resolutions: 3840 x 807
  • Resizing display (aspect ratio of 16:3.4)
  • Slim Bezel
  • Long lasting 24/7 operations
  • MTBF: 100,000 hours
Display
Screen Size 57.4" TFT LCD
Screen Resolution 3840x807
Display Ratio 16 ::3
Contrast Ratio 5600 ::1
Brightness 2000 nits
Viewing Angle 178°(H),178°(V)
Number of Colors 1.07B
Touch Screen
Touchscreen -
I/O Ports
Video

1x DVI-D
1x HDMI
1x DisplayPort

Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage 230V AC

Multimedia

Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg) 15.0 kg
Dimensions 1462.5x 333.8x 65.1mm
Enclosure
Bezel size
16/16/16/16 mm
Material
Mounting VESA 500x150, 900x150
Protection
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
