tBOX313-835-FL

Tuotenro
tBOX313-835-FL-RJ-POE-DC
Toimitusaika 21-30pv

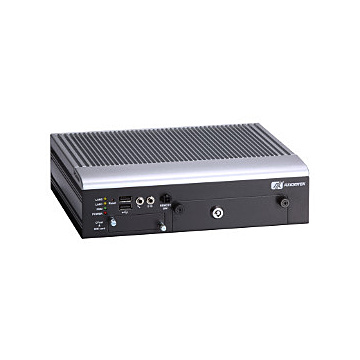

Fanless vehicle embedded system, with Intel Atom E3845 1.91 GHz 4 GB DRAM, 2 USB, 1 CAN bus, 2 PoE RJ-45 GbE LAN, 4 RS-422/485, 1 RS-232 and DIO
Ominaisuudet
* eMark, ISO7637 certificated, EN45545-2 complied
* Intel Atom Bay Trail-I E3845 4C@1.91 GHz
* High performance DDR-1333 4 GB memory onboard
* Operating temperature range of -40°C ~ +70°C
* Isolated RS-422/485, CANbus 2.0A/B and DIO ports
* Supports USB 2.0 and SATA2
* Suspension one 2.5” SATA HDD and 1 CFast™ socket
* Instant fuse repair design
* Internal mini PCIe slots and SIM socket
Pakkaus sisältää
tBOX313-835-FL-RJ-POE-DC
*1.91Ghz Atom cpu
*4GB RAM
Spesifikaatiot
Processor Core Logic System

CPU:
Intel Atom processor E3845 1.91 GHz

System Chipset:
SoC Integrated

System Memory:
4GB DDR3L RAM

Ethernet
2 x 10/100/1000Mbps RJ-45 PoE(optional M12 connector)

I/O Interface
4 x isolated RS-422/485
1 x isolated RS-232
1 x HDMI
1 x VGA

1 x isolated CAN bus
1 x isolated DI/DO (6-IN/2-OUT)
MIC-in/Line-out (Screw type)

Storage
1 x 2.5" SATA HDD drive bay
1 x CFast

Expansion
3 x PCI Express Mini Card (one supports mSATA)
2 x SIM

Power Supply
9 ~ 36VDC typical: 12/24VDC

Software Support
Win7, Win8, Linux

Environment Specifications
Operating Temperature -40°C to 70°C (with Wide-temp SSD)
Storage temperature: -40°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE, eMark, ISO 7637, EN45545-2 compliance

Mechanical
Construction: Steel /aluminium housing

Mounting:
Desk

Dimension: 244 x 180.5 x 65.1 mm
Weight: 3.0 kg
