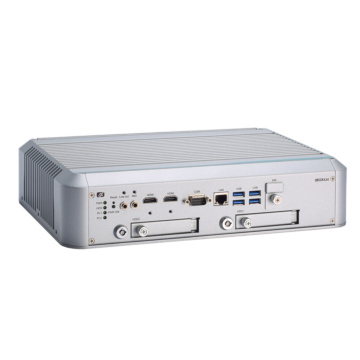

tBOX520-ADL-MR Railway Computer
Tuotenro
tBOX520-ADL-MR
Toimitusaika 21-30pv
Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 Processor for Railway
- CE, LVD, FCC, EN 50155, EN 45545-2 certified
- 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-U)
- 24 to 110 VDC for Railway applications
- Value-added modules available for various I/O requirements (COM/LAN/DIO/PoE/CAN/BNC)
- Intelligent solution of power management (ACC ignition)
- 2 swappable 2.5" SATA drives
| System | |
| Processor | 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor |
| Security Hardware | TPM2.0 |
| Chipset | SoC integrated |
| Storage | 1 x M.2 M key 2280 NVMe SSD (PCIe x4) 2 x Swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported |
| Memory | 2 x DDR5-4800 SO-DIMM, up to 64GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB 3.0 |
| Serial | 1 x DB9 serial console or RS-232/422/485 More COM ports available from I/O module (optional) |
| Video | 2 x Type A HDMI 1.4b (4K) |
| Ethernet | 1 x RJ-45 2.5GbE (Intel® i226-IT) PoE: Available from I/O module (optional) |
| Other Ports | CANBus: Available from I/O module (optional) DIO: Available from I/O module (optional) 1 x Mic-in 1 x Line-out |
| Expansion | |
| Expansion Interface | 1 x M.2 Key for 5G/WiFi 6/BT (PCIe/USB) 1 x Full-size Rev.1.2 PCI Express Mini Card slot for LTE/WIFI/BT (PCIe/USB) 2 x nano SIM slot 1 x M.2 Key A+E for WiFi 6/BT (PCIe/USB) |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11 / LINUX |
| Power | |
| DC Input / Source Voltage | 1 x M12 Connector 24 to 110 VDC input |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Vibration | 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random,
operating) 1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VI Category 4 compliant |
| Shock | EN 50155: EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction) |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 321 x 210.2 x 73.3 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Wall-mount |
| Certification | |
| Certification | CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2 |
| Jäähdytys | Fanless |
|---|
