tBOX810-838-FL
Tuotenro
tBOX810-838-FL-E3827-RJ-D
Toimitusaika 21-30pv

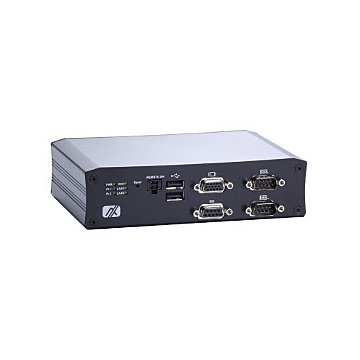

Fanless Embedded System with Intel Atom E3827 for Vehicle, Railway and Marine PC
Ominaisuudet
* eMark, ISO7637, EN50155, EN50121 and IEC60945 certificated
* Intel Atom Bay Trail-I E3827 2C@1.75GHz
* DDR3L-1333 4 GB system memory onboard
* Fanless with operating temperature range of -40°C ~ +70°C (EN50155 class TX)
* Intelligent power management solution
* Compact size with rich multiple I/Os, DIN rail and wall mount supported
* 2 full size mini PCIe card slots and 1 SIM card socket
* Intel Atom Bay Trail-I E3827 2C@1.75GHz
* DDR3L-1333 4 GB system memory onboard
* Fanless with operating temperature range of -40°C ~ +70°C (EN50155 class TX)
* Intelligent power management solution
* Compact size with rich multiple I/Os, DIN rail and wall mount supported
* 2 full size mini PCIe card slots and 1 SIM card socket
Pakkaus sisältää
tBOX810-838-FL-E3827-RJ-DC
*1.75Ghz Intel Atom cpu
*4GB RAM
*1.75Ghz Intel Atom cpu
*4GB RAM
Spesifikaatiot
Processor Core Logic System
CPU:
Intel Atom processor E3827 1.75 GHz
System Chipset:
SoC Integrated
System Memory:
4GB DDR3L RAM
Ethernet
2 x RJ-45 GbE LAN
I/O Interface
2 x RS-232/422/485
1 x VGA
2 x Audio (Line-out/Mic-in)
2 x 10/100/1000Mbps Ethernet
2 x USB 2.0
Storage
1 x 2.5" SATA HDD drive bay
1 x mSATA
Expansion
2 x PCIE mini Card slot, full-size
Power Supply
9 ~ 36VDC typical: 12/24VDC
Software Support
Win7, Win8, Linux
Environment Specifications
Operating Temperature -40°C to 70°C (with Wide-temp SSD)
Storage temperature: -40°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)
Safety: CE (Class A), EN50155, EN50121, eMark, ISO7637, IEC60945 certificated
Mechanical
Construction: Steel /aluminium housing
Mounting:
Desk/DIN Rail/Wall
Dimension: 163.8 x 108 x 44 mm
Weight: 0.8 kg
CPU:
Intel Atom processor E3827 1.75 GHz
System Chipset:
SoC Integrated
System Memory:
4GB DDR3L RAM
Ethernet
2 x RJ-45 GbE LAN
I/O Interface
2 x RS-232/422/485
1 x VGA
2 x Audio (Line-out/Mic-in)
2 x 10/100/1000Mbps Ethernet
2 x USB 2.0
Storage
1 x 2.5" SATA HDD drive bay
1 x mSATA
Expansion
2 x PCIE mini Card slot, full-size
Power Supply
9 ~ 36VDC typical: 12/24VDC
Software Support
Win7, Win8, Linux
Environment Specifications
Operating Temperature -40°C to 70°C (with Wide-temp SSD)
Storage temperature: -40°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)
Safety: CE (Class A), EN50155, EN50121, eMark, ISO7637, IEC60945 certificated
Mechanical
Construction: Steel /aluminium housing
Mounting:
Desk/DIN Rail/Wall
Dimension: 163.8 x 108 x 44 mm
Weight: 0.8 kg
