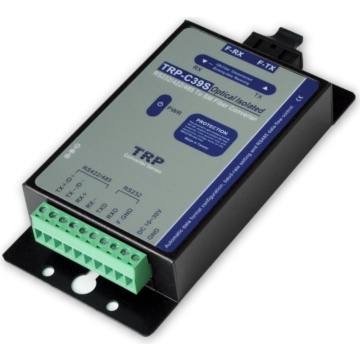

TRP-C39S

Tuotenro
TRP-C39S
Toimitusaika 14-22pv
Fiber to RS-232/422/485 Isolated Converter, SC single mode
Feature



  • Wide input range DC power supply.
  • SC single mode fiber port.
  • Auto direction flow control on RS-485.
  • Auto RS-232/422/485 signals switching.
  • Auto data format detecting.
  • Auto baud rate switching from 300bps to 115.2Kbps.
  • Support 3000V DC isolation protection.
  • Support surge protection on RS-422/485 data lines.
  • Power/TX/RX mode LED indicator.
  • Fiber transmission distance up to 40KM .
  • DIN rail or panel mount support.
Specifications



  • Power Input Voltage: DC +10V to +30V.
  • Interface: RS-232/422/485 auto switching.
  • RS-232: 3 full-duplex (TXD, RXD, GND).
  • RS-422: Differential 4 full-duplex wires(TX+,TX-,RX+,RX-).
  • RS-485: Differential 2 half-duplex wires(Data+,Data-).
  • Cable: Fiber cable (9/125um).
  • Wavelength: 1310(FPLD) nM.
  • Distance: Fiber up to 40KM and RS-422/485 up to 4000ft (1200M ).
  • RS-422/485 line protection: Against surge, short circuit, voltage peak.
  • Connection type: Screw terminal for maximum AWG #12~30 wires.
  • Power supply: Screw terminal, or external DC adapter.
  • Power consumption: 110mA/12V
  • Isolation Voltage: 3000V DC.
  • Operating environment: -10 to 50℃ .
  • Storage temperature: -20 to 70℃.
  • Humidity: 10~90% Non-condensing.
  • Dimension: 151mm X 75mm X 26mm .
  • Weight: 388g .
Lisätietoja
Media 1 Fiber
Media 2 RS-232/422/485
