UNO-127
Tuotenro
UNO-127
Toimitusaika 21-30pv

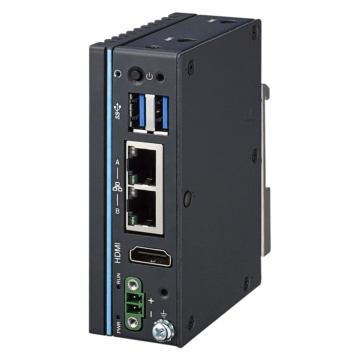

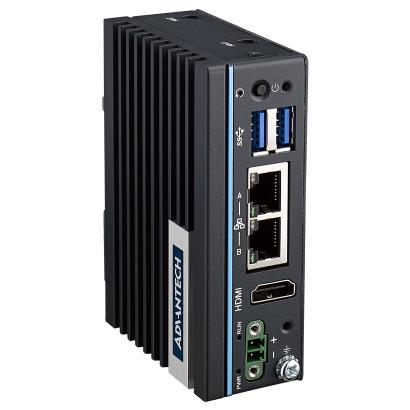

Pocket-Size DIN-Rail Edge IPC with Intel® Atom® x6413E
- Intel® Quad core x6413E processor with 4GB/8GB DDR4 onboard memory
- Compact, robust, fanless and cable-free system with high stability

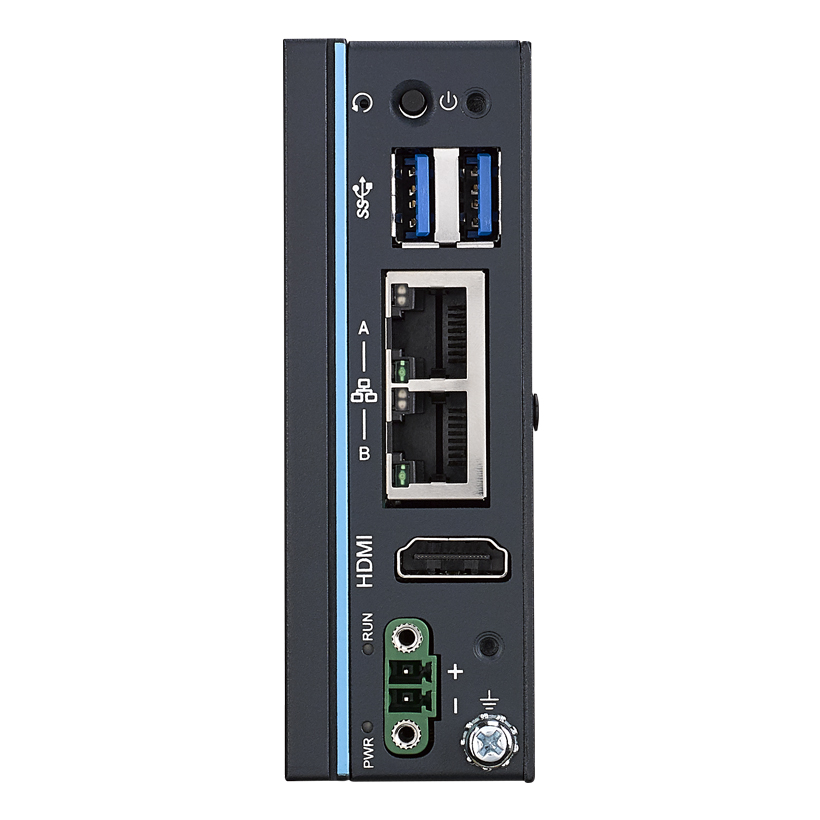

- Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
- On-board full-size mPCIe port for various expansion capability
- Built-in TPM2.0 for hardware-based security
- System ground isolation design
- Certified with IEC 61010-2-201 for industrial application
- Ubuntu Core 20 certified hardware
- Support Windows 11 IoT Enterprise LTSC
| System | |
| Processor | Intel® Atom® x6413E quad-core, 1.5 GH |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x Full-size mPCIe slot (SATA/PCIe/USB2.0) |
| Storage Support | eMMC / SATA |
| Memory | 4 GB/8 GB DDR4 2666 MHz onboard |
| Audio | |
| Graphics | Intel® UHD Graphics |
| I/O Ports | |
| USB 2.0 | |
| USB 3.2 | 2x USB 3.2 |
| Serial | 4 x isolated RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps (Intel i210IT) |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x Full-size mPCIe (shared with storage) |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 10-30V DC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | |
| Shock | |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.5 kg |
| Dimensions | 34 x 70 x 100 mm |
| Enclosure | |
| Bezel | |
| Material | Metal |
| Mounting | Din-Rail |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| Operating Temp | Wide Temp -40..70C |
