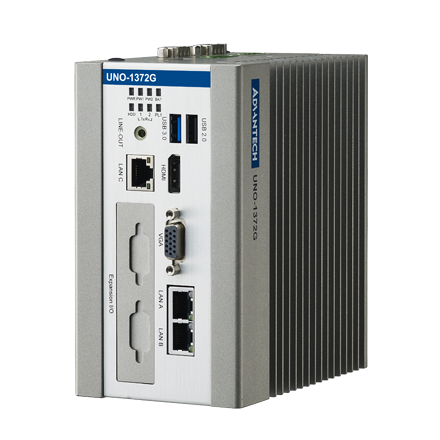

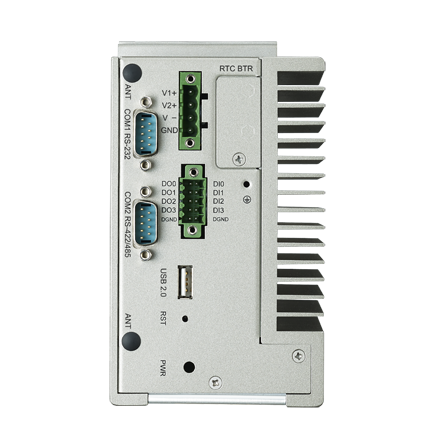

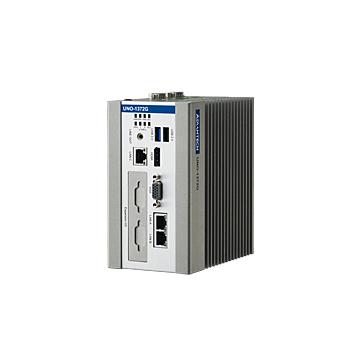

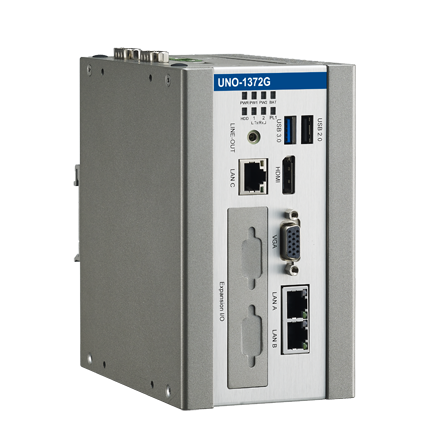

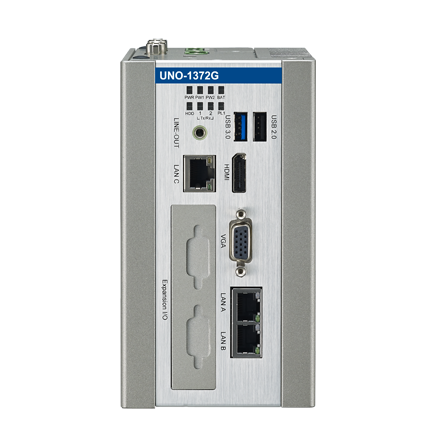

UNO-1372G

Tuotenro

UNO-1372G-E

Toimitusaika 21-30pv

Small Size DIN-rail IPC with Intel® Atom™ E3845

Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
Compact with Fanless Design
Dual Power Input for avoiding Power Down Time
Exchangeable RTC Battery with easy Access on the Top
Digital I/O with Isolation Protection for Sensing and controlling
Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
Supports MRAM by iDoor Technology
LAN Redundancy (Teaming)

System
Processor	Intel Atom E3845 1.91GHz, 2MB L2 Cache
Security Hardware	TPM2.0
Chipset	SoC
Storage	drive bay for SATA 2.5" HDD
Storage Support
Memory	Built-in 4GB DDR3L 1333 MHz
Audio	Line-out
Graphics	Intel® HD Graphics
I/O Ports
USB 2.0	2 x USB2.0
USB 3.2	1x USB 3.0
Serial	1x RS-232/422/485 1x RS-232
Video	1 x VGA 1 x HDMI
Ethernet	3 x 10/100/1000 Mbps Ethernet
Other Ports
Expansion
Expansion Interface	2 x mPCIe slot
Operating System
Operating System	Windows® 10, LINUX
Power
DC Input / Source Voltage	9-36V DC
Operating Temperature
Operating Temperature	-20°C ~ +60°C (with Wide-Temp SSD, Memory)
Humidity Range	10% ~ 90%, non-condensing
Vibration
Shock
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	0.8 kg
Dimensions	85 x 139 x 152 mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Desk / Wall Mount
Certification
Certification	CE
