UNO-238
Tuotenro
UNO-238
Toimitusaika 21-30pv

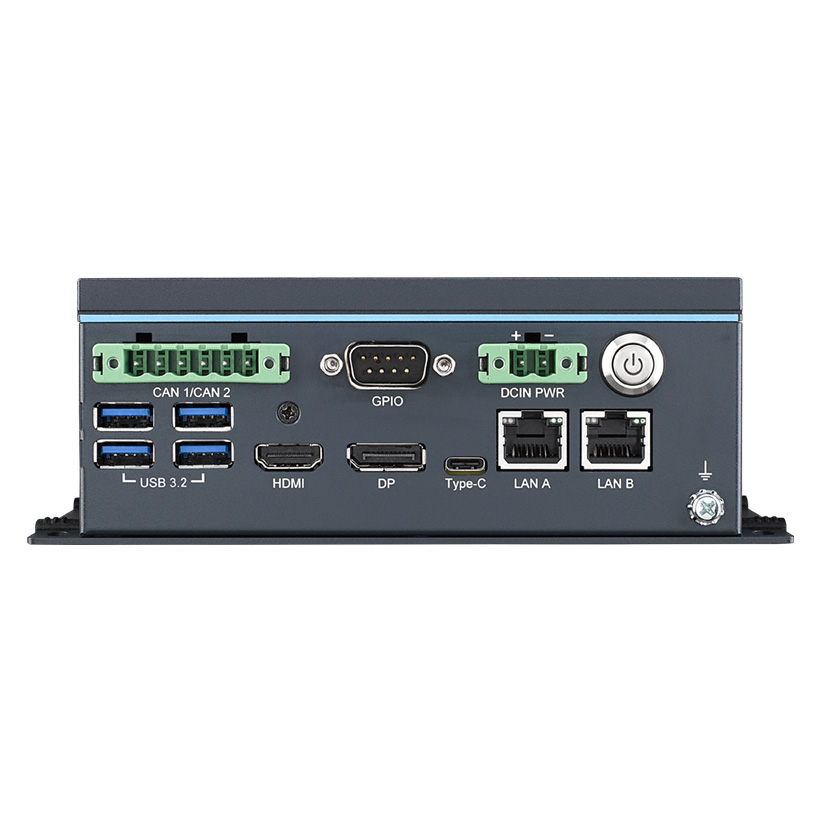

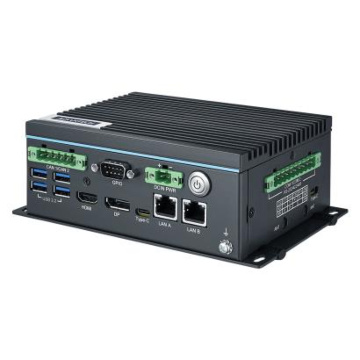

Compact IoT Edge Computer with Intel® 12th Gen. Core™ i Processor
- 12th Gen Intel® Core™ i Processor up to 10 Cores
- Dual Channel DDR5-4800 up to 64GB
- M.2 E-Key, B-Key, M-Key (support NVMe) expansion for storage/wireless
- Equipped with CANBus for reliable communication
- DC-in terminal block for wiring flexibility
- Supports multiple displays for ThinManager solution
- Supports software APIs, WISE DeviceOn, WISE Edge365
| System | |
| Processor | Intel® i7-1265UE (10 cores), 1.7 GHz (up to 4.7 GHz) Intel® i5-1245UE (10 cores), 1.5 GHz (up to 4.4 GHz) Intel® i3-1215UE (6 cores), 1.2 GHz (up to 4.4 GHz) Intel® U300E, up to 4.30 GHz |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x M.2 B-Key 2242 (PCIe x1/SATA, USB 2.0) 1 x M.2 M-Key 2280 (PCIe x4, Gen 4 NVMe) |
| Storage Support | |
| Memory | 2x DDR5 |
| Audio | |
| Graphics | Intel® Iris Xe Graphics |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.2 | 4 x USB 3.2 2 x USB Type-C |
| Serial | 2 x RS-232/422/485 |
| Video | 1 x HDMI 2.0 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet |
| Other Ports | GPIO 8bit 2 x CAN2.0 |
| Expansion | |
| Expansion Interface | 1 x M.2 B-Key 3042/3052 for LTE module (PCIe x1/SATA, USB 2.0) 1 x M.2 E-Key 2230 for Wifi module (PCIe x1, USB 2.0) |
| Operating System | |
| Operating System | Windows® 10/ Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 12-24V DC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | |
| Shock | |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.8 kg |
| Dimensions | 150 x 107 x 60 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall Mount |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Advantech |
|---|---|
| Jäähdytys | Fanless |
| Operating Temp | Wide Temp -10..50C |
