UNO-258

Tuotenro

UNO-258

Toimitusaika 21-30pv

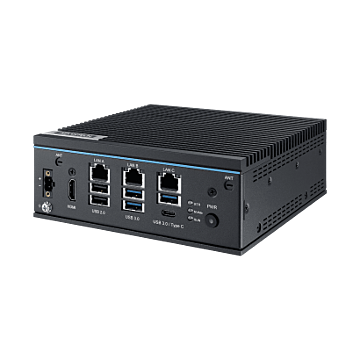

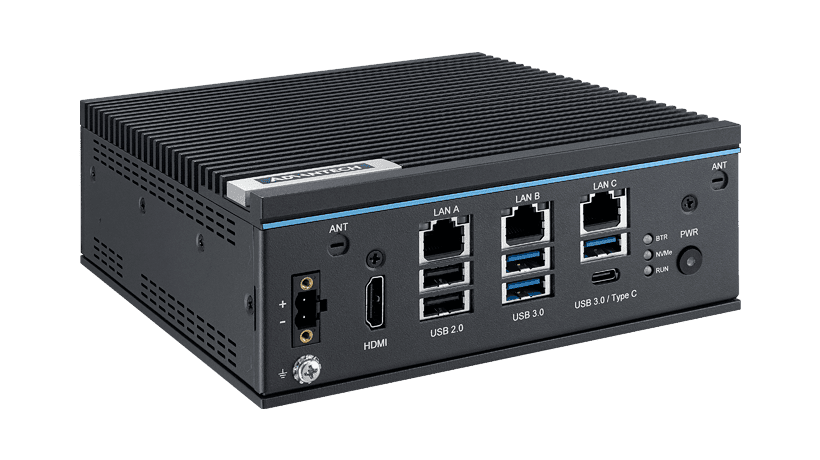

Edge AI Compact Box PC with Intel® Core™ Ultra Processor (Series 3)

Intel® Core™ Ultra series 3 processors (code name: Panther Lake H) with 25W and 45W TDP support
Integrated AI acceleration providing up to 180 TOPS total AI performance (120 GPU + 50 NPU + 10 CPU)
Xe3 GPU architecture providing up to 2× the graphics performance compared to Arrow Lake-H
Dual-channel DDR5 SO-DIMM memory supporting up to 128GB (64GB per channel)
M.2 E-Key, B-Key, M-Key (supports NVMe) expansion for storage, LTE/5G, and Wi-Fi
Built-in 1000Mbps & 2500Mbps LAN ports with TCC and TSN support

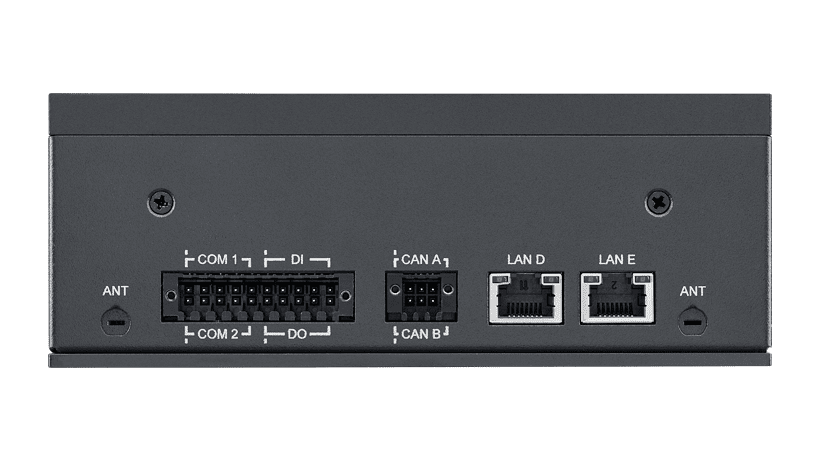

Modular I/O board design offering dual LAN or isolated DIO/CANBUS/COM

System
Processor	Intel Atom E3845 1.91GHz, 2MB L2 Cache
Security Hardware	TPM2.0
Chipset	SoC
Storage	1 x M.2 M-key 2280 (PCIe x4, Gen 4 NVMe)
Storage Support
Memory	2x DDR5
Audio
Graphics	Intel® ARC Graphics (Xe3)

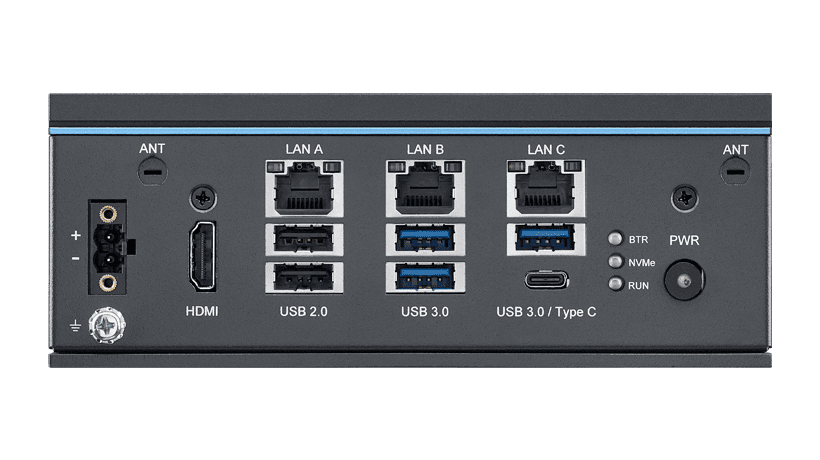

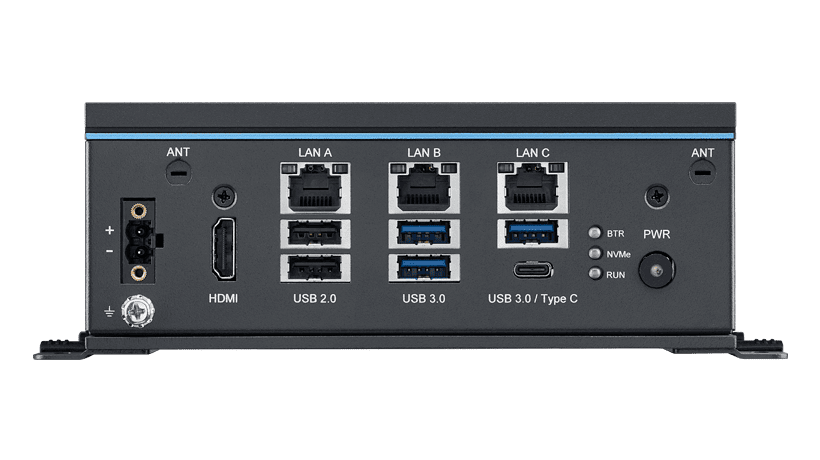

I/O Ports
USB 2.0	2 x USB2.0
USB 3.2	3 x USB 3.2 1 x USB Type-C
Serial	2 x RS-232/422/485
Video	1 x HDMI 1.4
Ethernet	5 x 10/100/1000 Mbps Ethernet
Other Ports	GPIO 8bit 2 x CAN2.0 Digital I/O 4/4 (isolated)
Expansion
Expansion Interface	1 x M.2 B-key 3052 (USB 3.2, Gen 2) 1 x M.2 E-key 2230 (PCIe x1/USB2.0) 1 x M.2 M-key 2280 (PCIe x4, Gen 4 NVMe, share with storage)
Operating System
Operating System	Windows® 11, LINUX
Power
DC Input / Source Voltage	12-24V DC
Operating Temperature
Operating Temperature	-20°C ~ +60°C (with Wide-Temp SSD, Memory)
Humidity Range	10% ~ 90%, non-condensing
Vibration
Shock
Cooling System / Thermal Solution
Thermal Solution
Dimensions / Weight
Weight (kg)	2.5 kg
Dimensions	160 x 160 x 60 mm
Enclosure
Bezel
Material	Aluminum / Steel

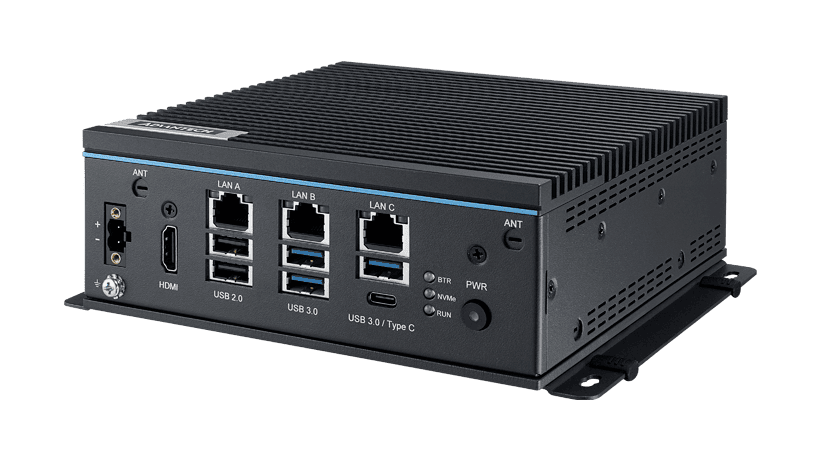

Mounting	Desk / Wall Mount
Certification
Certification	CE, FCC Class A, UL, CCC, BSMI
