UTC-510DP-APB0E

Toimitusaika 21-30pv
Tuotenro
UTC-510DP-APB0E

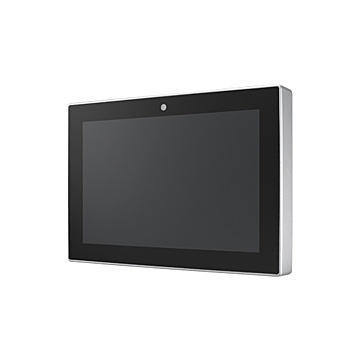

10.1" Ubiquitous Touch Computer with Intel Celeron N2807
Ominaisuudet
* Built-in Intel® Celeron® N2807
* 10.1" LCD with 16:10 widescreen display
* Fanless and low-power system design
* IP65-rated front panel for water and dust proof
* Support landscape and portrait screen display
* VESA 75 mm standard mounting holes for varied mounting demands
* Detachable plastic frame design for panel mount applications
Spesifikaatiot
LCD Specifications
Size: 10.1"
Resolution : 1280x800
Brightness : 250 cd/m²
Viewing Angle (H-V): 170/170

Touchscreen
PCAP, Multitouch

Processor Core Logic System

CPU:
Intel Celeron N2807

System Memory:
2GB DDR3L 1600MHz SO-DIMM SDRAM

Ethernet
2x 10/100/1000 Base-T Ethernet
(1x with POE)

I/O Interface
2 x RS-232 COM (COM2 RS-422/485 supported)
3 x USB 2.0
1 x USB 3.0
2 x Gigabit Ethernet ports (1 with POE)
Headphone with MIC x1


Storage
1x 2.5" SATA SSD slot
1x mSATA slot (via Mini PCIe)

Expansion
1x Full size MiniPCIe/mSATA
1x Half size MiniPCIe

Power Supply
PoE+

Software Support
Window 10 IoT Enterprise, Linux Ubuntu 14.04, Android 4.4.2

Environment Specifications
Operating Temperature 0°C to 45°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)


Mechanical
Mounting: Panel, VESA
Dimension: 265.40 x 182.40 x 39.55 mm

Safety: CE
