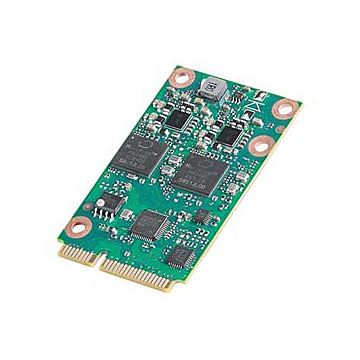

miniPCIe Edge AI Module with two Intel® Movidius™ Myriad™ X VPUs onboard
  • Intel® Movidius™ Myriad™ X VPU onboard
  • Ultra compact, Low power consumption
  • Hardware acceleration for common deep neural networks
  • Scalable for multi video streams edge inference
  • 10 times the performance compared to previous generation
  • Intel® OpenVINO™ toolkit fully supported
SOC 2x Myriad X MA2485

Form Factor Full size Mini PCIe
Dimension 30mm x 50.95mm x 4.86mm
Interface PCIe Gen2 x1, USB2.0
Operating Temperature -20 ~ 55 °C, with 0.7m/s air flow
Power Consumption 7.6W
Cooling Passive cooling
Operating System Windows 10 Enterprise 64 bit, Ubuntu 16.04.3 LTS (64 bit), CentOS 7.4 (64 bit)
OpenVINO OpenVINO R2 2019 or latest
Framework Support TensorFlow, Caffe
