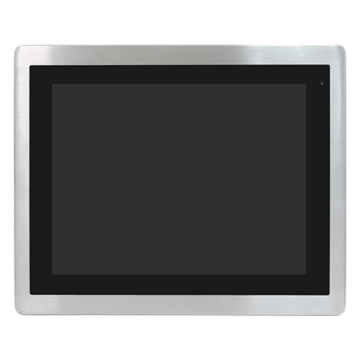

ViTAM-112

Tuotenro
ViTAM-112-x
Toimitusaika 21-30pv
  • 12.1” New Generation Stainless Steel Display
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
  • IP66/IP69K Rated with M12 Connectors
  • Support Resistive Touch, Projected Capacitive Touch, and Glass
  • Touch on/off Button on the Side Edge for Hygienic Cleaning
  • Support Ergonomic Versatile Mounting: Yoke Mounting /Space-saving
  • VESA 75 x 75 mm Mounting
Display
Screen Size 12.1" TFT LCD
Screen Resolution 1024x768
Display Ratio 4 ::3
Contrast Ratio 1000 ::1
Brightness 500 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen Protective Glass / 5-wire Resistive/PCAP
I/O Ports
Video 1x VGA, 1x HDMI (M12 connector)
Other Ports USB Touch
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 9-36V DC
230V AC with adapter
Power Management
Multimedia
Integrated Speakers (option)
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.6 kg
Dimensions 335 x 265 x 53mm
Enclosure
Bezel
Material Stainless Steel
Mounting VESA
Protection Total IP66
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
Lisätietoja
Näytön koko12.1"
Näytön signaali (input)VGA, HDMI
