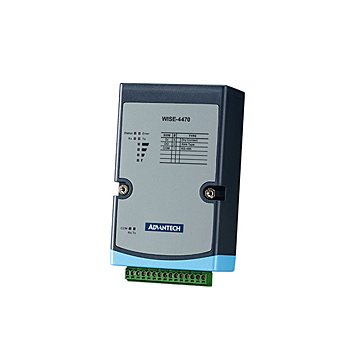

WISE-4470-S414

Toimitusaika 4-22pv
Tuotenro
WISE-4470-S414
3G IoT WSN with 4 Analog Input, HSPA+900/2100, IP65
Ominaisuudet
* Application-ready I/O combination with internal antenna
* Wide coverage of 3G frequency bands from 800 to 2100MHz
* Supports multiple cellular technologies including GSM, GPRS & HSPA
* Fast and easy deployment to reduce operation cost
* Data can be automatically pushed to cloud service
* Supports RESTful web API in JSON format for IoT integration
Spesifikaatiot
Wireless interface
Function Wireless Sensor Node
IEEE Standard GSM/GPRS/HSPA
Frequency Band UMTS/HSPA: 1/8 (900/2100MHz)
GSM/GPRS/EDGE: 2/3/5/8(1900/1800/850/900MHz)
Mode/Topology -
Outdoor Range
GNSS
Network
Interface Micro-B USB
Protocol REST, MQTT, Azure
Analog/Sensor Input
Channel 4-ch
Input Type V , A
Input Range 0~10V, 0~20mA, 4~20mA
Digital Input/Output
Channel -
Serial Port
Port Number -
Power Input
Battery Power -
External Power 10 ~ 50 VDC
