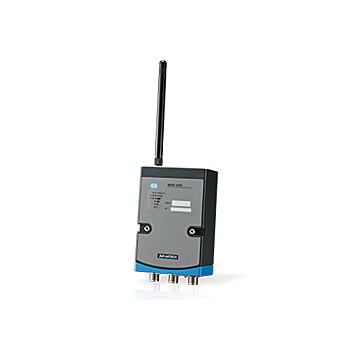

WISE-4610-S614
Tuotenro
WISE-4610-S614EA
Toimitusaika 14-22pv
LoRa WSN with
4-ch AI and 4-ch DI
4-ch AI and 4-ch DI
Ominaisuudet
* Longer communication range than 2.4GHz
* Better penetration through concrete and steel than 2.4GHz
* Less interference than 2.4GHz spectrum
* Application-ready I/O combination with IP65 housing
* Powered by solar rechargeable battery or 10~50V DC input
* Better penetration through concrete and steel than 2.4GHz
* Less interference than 2.4GHz spectrum
* Application-ready I/O combination with IP65 housing
* Powered by solar rechargeable battery or 10~50V DC input
Spesifikaatiot
| Wireless interface | |
| Function | Wireless Sensor Node |
| IEEE Standard | IEEE 802.15.4g LoRa Modulation |
| Frequency Band | EU868 |
| Mode/Topology | Star |
| Outdoor Range | 5000m (L.O.S.) |
| GNSS | GPS/GLONASS/BeiDou |
| Network | |
| Interface | Micro-B USB |
| Protocol | - |
| Analog/Sensor Input | |
| Channel | 4-ch |
| Input Type | V, A |
| Input Range | 0~10V, 0~20mA, 4~20mA |
| Digital Input/Output | |
| Channel | - |
| Serial Port | |
| Port Number | - |
| Power Input | |
| Battery Power | Solar Rechargeable Battery |
| External Power | 10 ~ 50 VDC |
