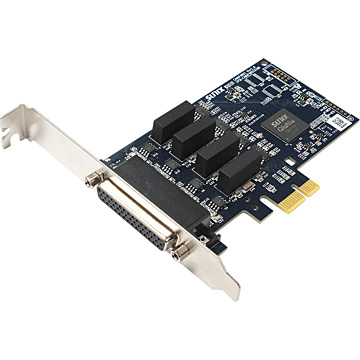

CAN4F00SI CAN FD PCIe-Card
Tuotenro
CAN4F00SI
Toimitusaika 21-30pv
PCIe to 4-port Isolated CAN FD Communication Card
- Designed to meet PCI Express Base Specification Revision 2.1.
- Equipped with high reliable SUNIX QiuNiu controller.
- Complies with CAN specifications 2.0B and FD
- CAN FD bit rates for the data field up to 8 Mbit/s
- Isolation on the each CAN channel up to 2.5KV
- Surge protection up to 2KV
- Plug-n-Play, I/O address and IRQ assigned by system.
- Support proprietary SocketCAN driver, allowing users to program under Linux operating systems.
| Processor | |
| Interface | PCI Express |
| Controller | SUNIX QiuNiu Controller |
| BUS | PCI Express 2.0 x1 |
| IRQ & IO | Assigned by System |
| ESD Protection | ±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge |
| CAN Communication | CAN2.0 / CAN FD |
| 4-Channel | |
| Data bitrate | 1Mbit/s, 8Mibit/s |
| Software | Linux 5.x, SocketCAN |
| PCB Dimension | 110x68.5mm, Bracket Full height |
| I/O | CAN bus |
|---|---|
| Valmistaja / Brand | Sunix |
| Connection | PCIEx1 |
