CO-W124C

Tuotenro
CO-W124C-R10
Toimitusaika 21-30pv

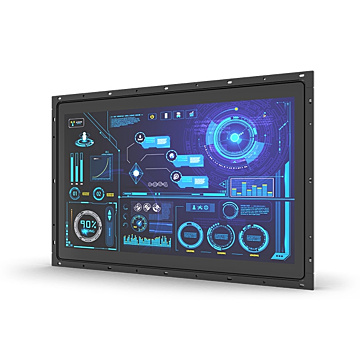

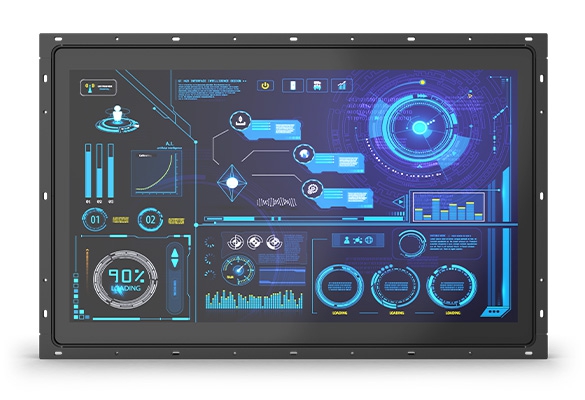

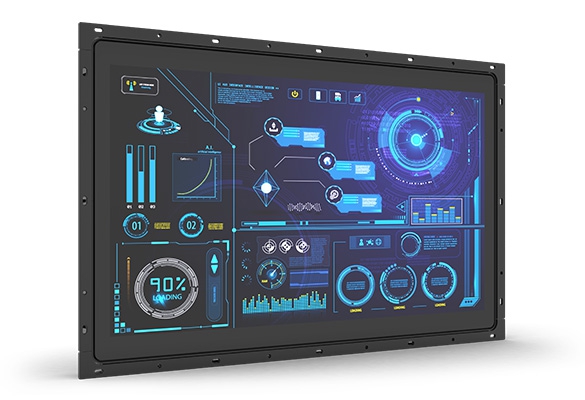

24" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch

  • 24" TFT-LCD with Projected Capacitive Touch

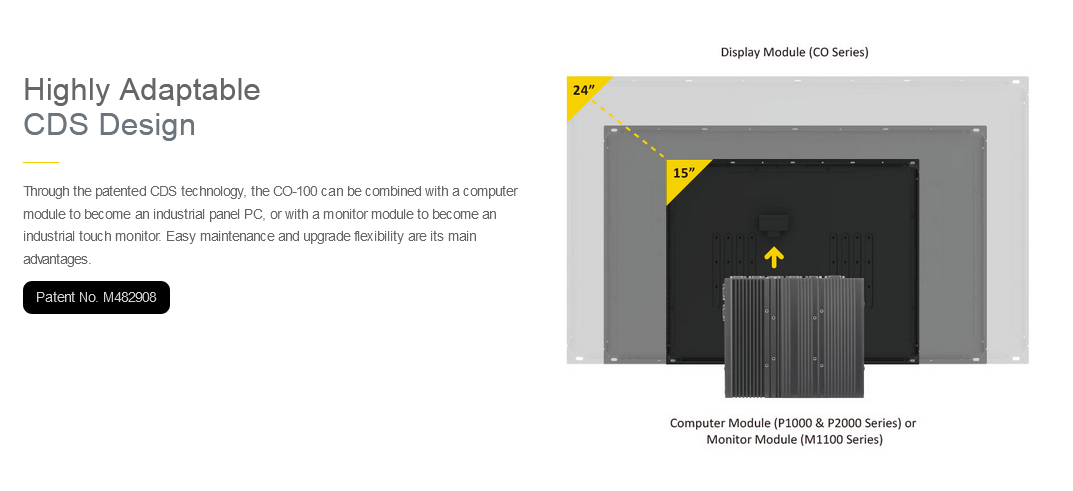

  • Cincoze Patent CDS Technology Support

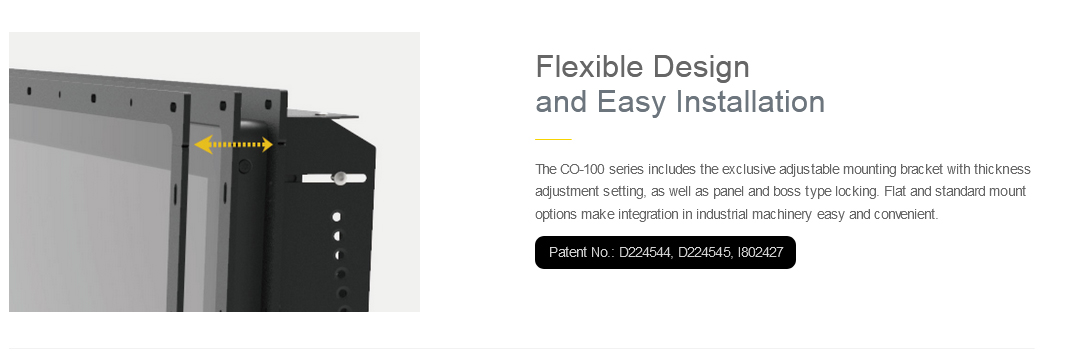

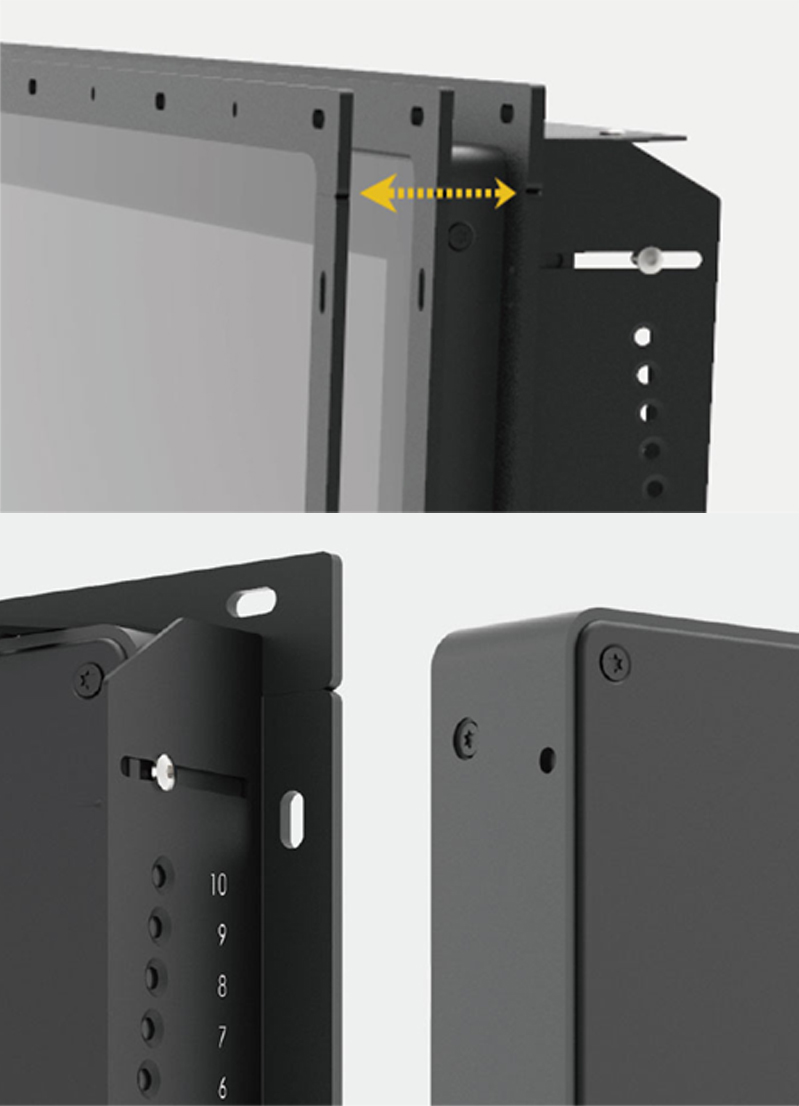

  • Designed with Adjustable Mounting Bracket

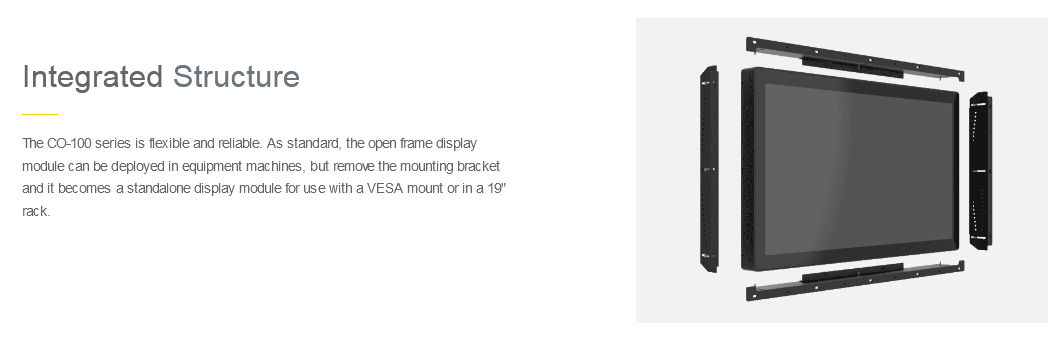

  • Support Flat / Standard / VESA / Rack Mount

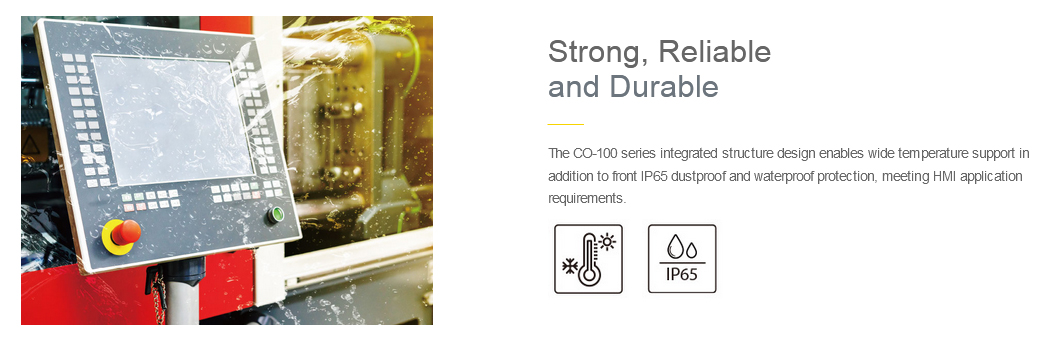

  • Front Panel IP65 Compliant
  • Wide Operating Temperature
Display
Screen Size 24" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16 ::9
Contrast Ratio 5000 ::1
Brightness 300 nits
Viewing Angle 178 (H) / 178 (V)
Number of Colors
Touch Screen
Touchscreen PCAP
I/O Ports
Video with Monitor or PC module (CDS)
Other Ports
Operating System
Operating System
Power
DC Input / Source Voltage
Power Management
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature -20ºC to 70ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 7.2 kg
Dimensions 604 x 387.2 x 63.3mm
Enclosure
Bezel
Material Steel
Mounting Flat / Standard/ VESA/ Rack mount
Protection Front Panel IP65 Compliant * According to IEC60529
Certification
Certification CE, UKCA, FCC, ICES-003 Class A
Lisätietoja
Valmistaja / BrandCincoze
Näytön koko24"
Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
Näytön signaali (input)CDS
