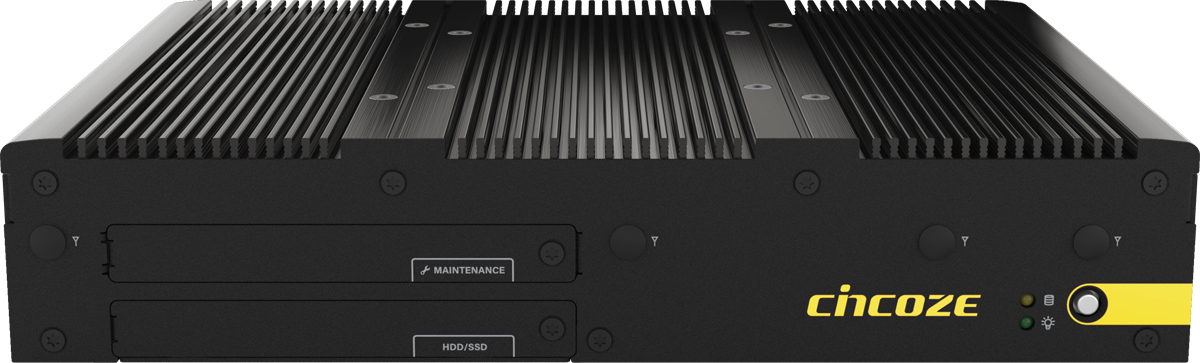

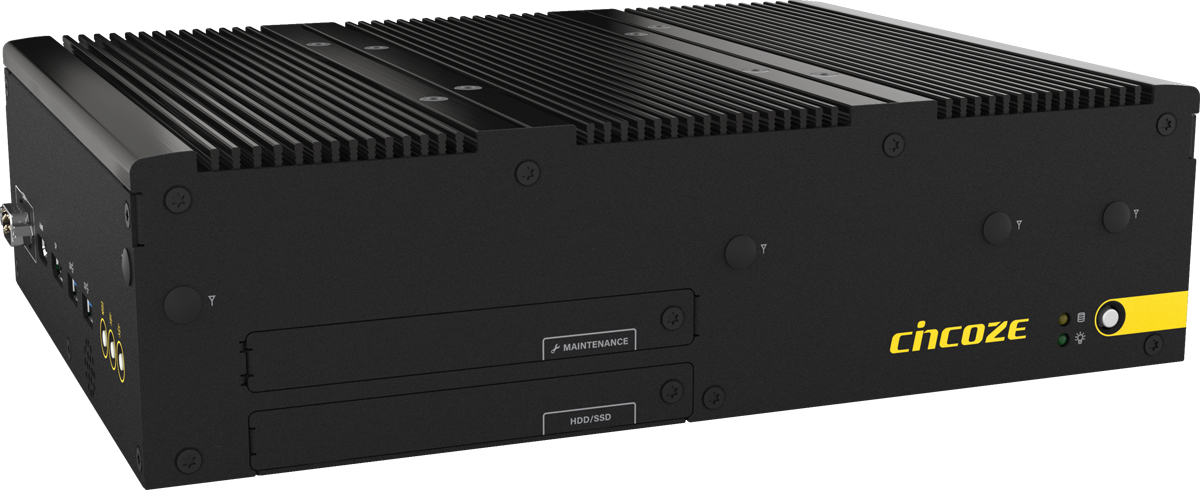

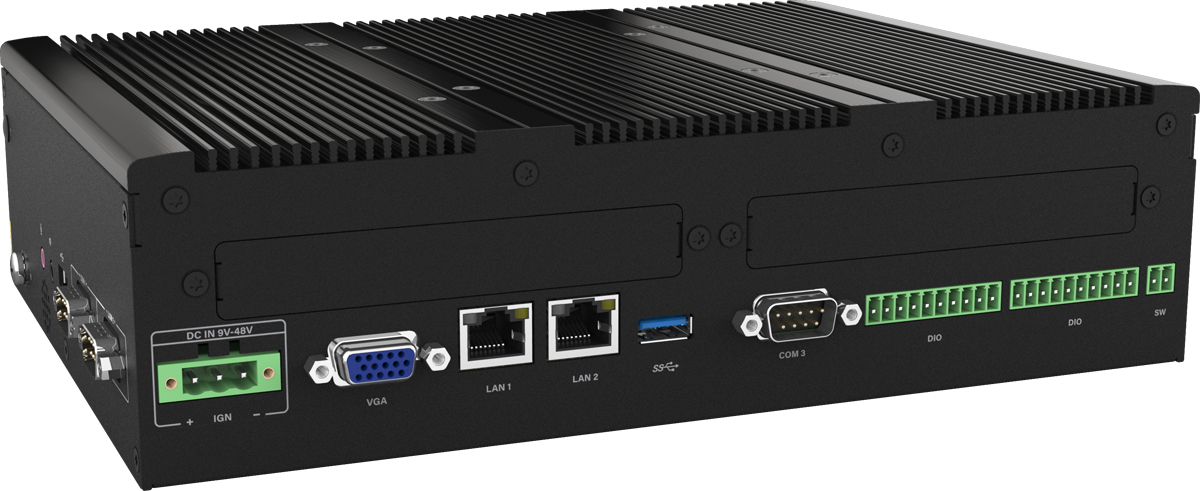

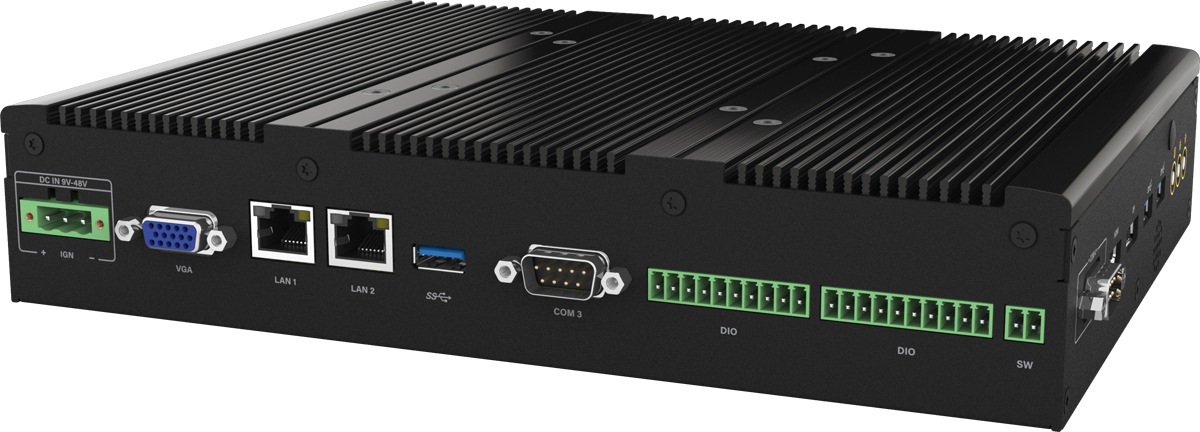

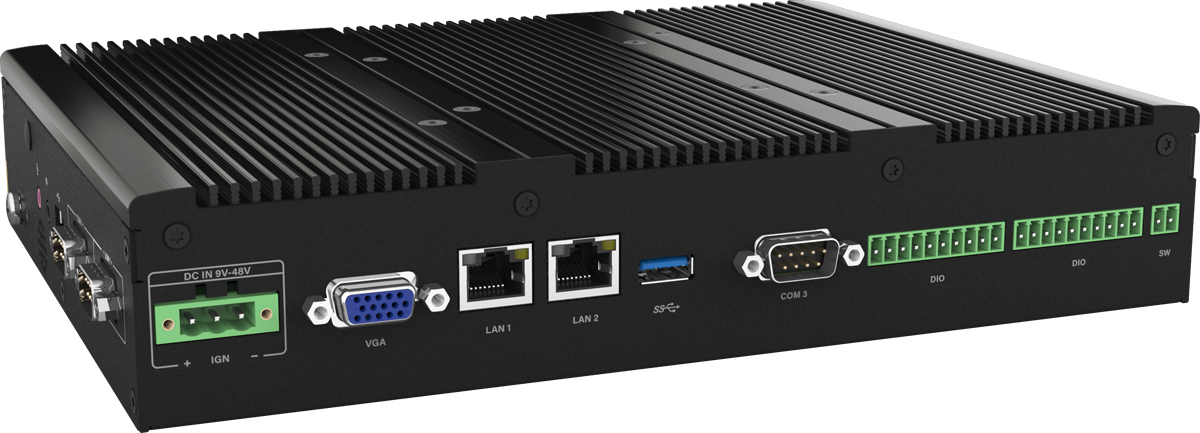

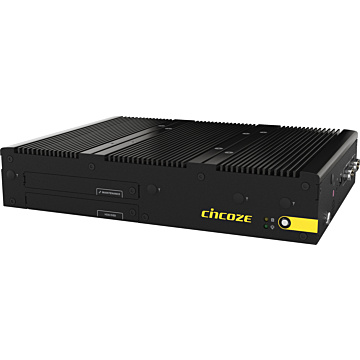

P2302(E) CDS PC Module
Tuotenro
P2302
Toimitusaika 21-30pv

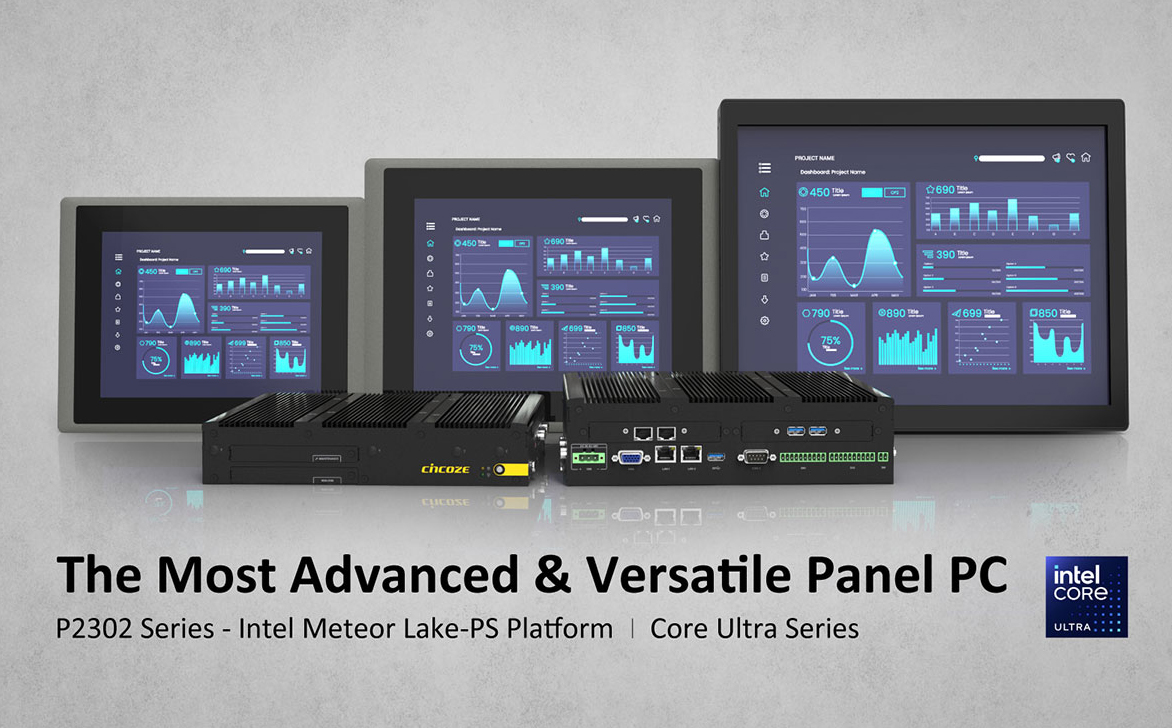

Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer with CDS Technology
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- 2x DDR5 SO-DIMM Socket, Supports up to 5600MHz 64GB Memory
- 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
- Supports Cincoze Patent CDS Technology (Patent No. M482908)
- Optional CFM Module for Power Ignition Sensing & PoE Function
- Wide Operating Temperature -40°C to 65°C
| System | |
| Processor | Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor: - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2x 2.5” SATA3 HDD/SSD Bay Support RAID 0/1 |
| Memory | 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB |
| Audio | Realtek ALC888 High Definition Audio |
| Graphics | Intel® Graphics |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 3x USB 3.2 |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |

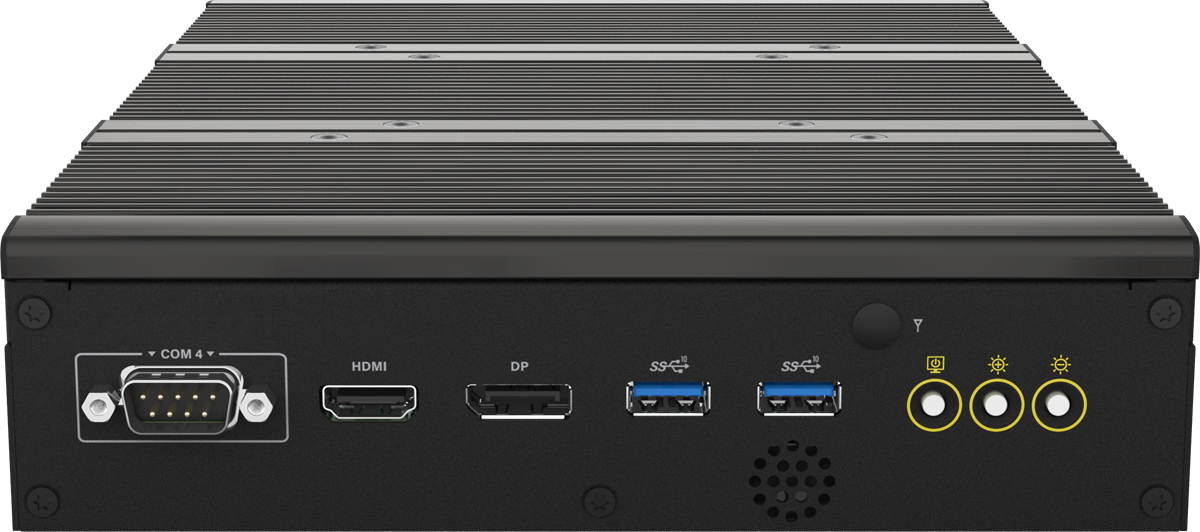

| Video | 1x Display Port (4096 x 2304) 1x HDMI 1x VGA 1x CDS Interface |
| Ethernet | 2x 2.5GbE LAN , RJ-45 - GbE1: Intel® I225 - GbE2: Intel® I225 |

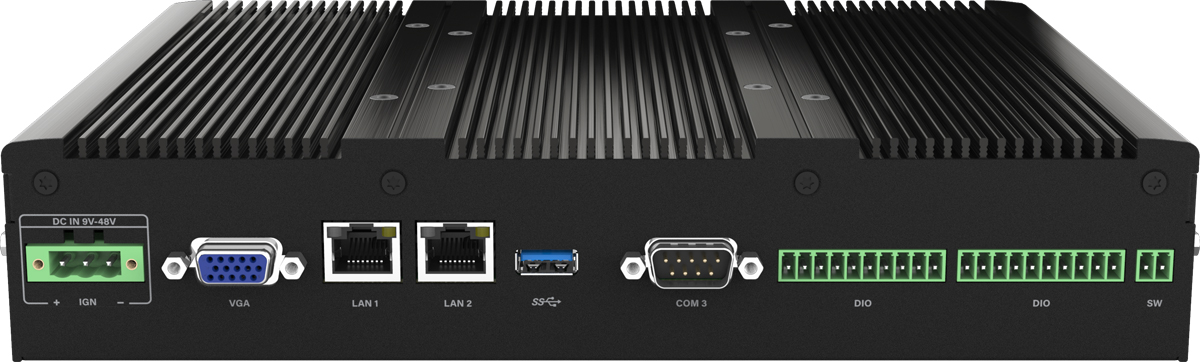

| Other Ports | Mic-in/Line-out 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x 1x M.2 2230 E Key Socket for Wireless Module 2x CFM interface 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen4x2/USB3.2/) Support 5G 1x M.2 Key B Type 3042 Socket (PCIe Gen3x2) Support Addon Card/Storage 1x SIM Socket 6x Antenna hole 1x Convertible Display System (CDS) Interface |
| Operating System | |
| Operating System | Windows® 10/Windows® 11 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms, Half-sine 11 ms Duration Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.2 kg |
| Dimensions | 254.5 x 190 x 49.5 mm E-model: 254.5 x 190 x 69 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Display module with CDS Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Fanless |
