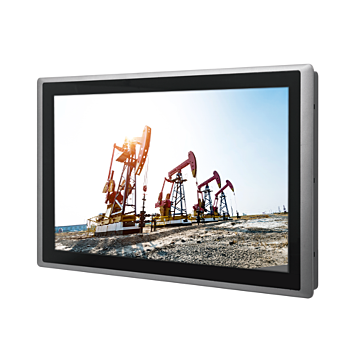

CS-W121C 21.5" TFT Hi-Bright PCAP Touch
Tuotenro
CS-W121C-R10
Toimitusaika 21-30pv
21.5" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch
- 21.5" TFT-LCD with Projected Capacitive Touch
- Brightness up to 1,000 nits
- Resolution up to 1920 x 1080 (Full HD)
- 50,000 hrs LED Backlight Life
- Wide Range Operating Temperature 0°C to 80°C
- IP 65 Compliant Front Panel
- Flat Rugged Aluminum Die-casting Bezel
- Convertible Display System (CDS) Technology Supported
- Safety: UL, cUL, CB, IEC, EN 62368-1
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920 x 1080 (FHD) |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 5000:1 |
| Brightness | 1000 nits |
| Viewing Angle | 178 / 178 degree |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Video | According to CDS module (M-series monitor module or PC module) |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 80ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 5.6 kg |
| Dimensions | 550 x 330.5 x 64 mm |
| Enclosure | |
| Bezel | IP65 front panel , flat surface |
| Material | Aluminium |
| Mounting | by CDS module |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A |
| Näytön koko | 21.5" |
|---|---|
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| Näytön signaali (input) | CDS |
