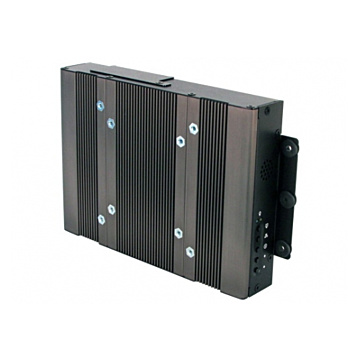

M1101 CDS Monitor Module
Tuotenro
M1101_R10
Toimitusaika 21-30pv
CDS Monitor Module with 1x DisplayPort, 1x HDMI, 1x VGA
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Convertible Display System (CDS) Supported
- EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
- Safety Certification: UL, cUL, CB, IEC, EN 62368-1
| System | |
| Video Input | 1x VGA 1x HDMI 1x DisplayPort |
| Audio | AMP 2W+2W (internal Speaker) Audio Line-In (3.5mm phone jack) |
| Touch interface | USB RS-232 (Resistive touch only) |
| OSD Function | LCD On/Off , Auto, Menu, Brigtness Up/Down |
| Power | |
| DC Input / Source Voltage | 9-48V DC input 230V AC-DC Adapter (optional) |
| Operating Temperature | |
| Operating Temperature | -20C .. 60C |
| Humidity Range | 10%-95% |
| Thermal Solution | Passive – Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 204 x 149 x 38,5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Wall / VESA/ CDS Mounting |
| Certification | |
| Certification | UL, cUL, CB, IEC, EN 62368-1 CE, UKCA, FCC, ICES-003 Class A EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) |
