CS-W124C

Tuotenro
CS-W124C-R10
Toimitusaika 21-30pv

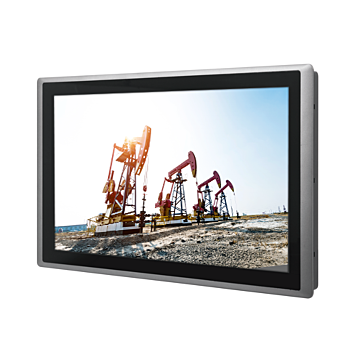

24" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch

  • 24" TFT-LCD with Projected Capacitive Touch
  • Ultra High Brightness up to 1,500 nits
  • Resolution up to 1920 X 1080 (Full HD)
  • 50,000 hrs LED Backlight Life
  • Wide Range Operating Temperature -20°C to 70°C
  • IP 65 Compliant Front Panel
  • Flat Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
Display
Screen Size 24" TFT LCD
Screen Resolution 1920 x 1080 (FHD)
Display Ratio 16 ::09
Contrast Ratio 5000:1
Brightness 1500 nits
Viewing Angle 178 / 178 degree
Number of Colors 16.7M
Touch Screen
Touchscreen Projected Capacitive (Multi-touch)
I/O Ports
Video According to CDS module
(M-series monitor module or PC module)
Other Ports
Operating Temperature
Operating Temperature -20ºC to 70ºC
Humidity Range 10% to 80% non-condensing
Dimensions / Weight
Weight (kg) 6.7 kg
Dimensions 605 x 373 x 64 mm
Enclosure
Bezel IP65 front panel , flat surface
Material Aluminium
Mounting by CDS module


Certification
Certification CE, UKCA, FCC, ICES-003 Class A
Lisätietoja
Näytön koko24"
Kosketusominaisuuden tyyppiProjected Capasitive (PCAP)
Näytön signaali (input)CDS
