DS-1100

Varastossa
Tuotenro
DS-1100

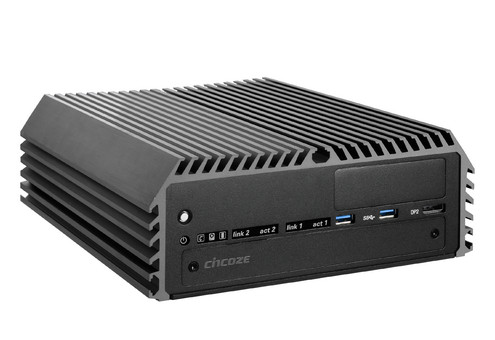

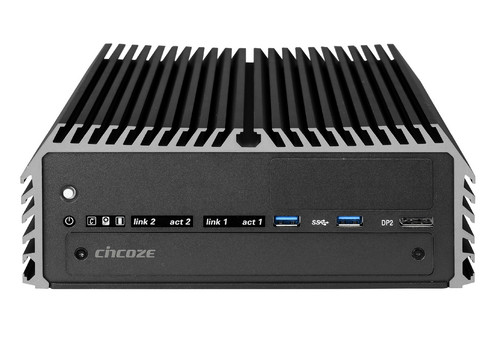

Vehicle Computer, 6th Generation Intel Core™ i3 / i5 / i7, Modular and Expandable, Rugged
Ominaisuudet
* Supports 6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU
* DDR4 memory, supports Up to 32 GB
* Triple Independent Display (DVI-I, DP, DP/HDMI)

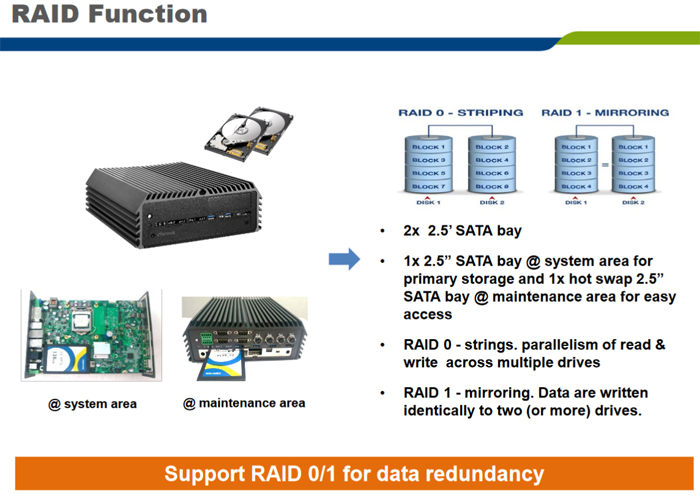

* 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
* 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
* 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
* Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
* Wide Operating Temperature (-40°C to 70°C)
* e-Mark, EN50155 / EN50121-3-2 Certified for Railway Application
Spesifikaatiot
System
Processor 7th gen Intel® Core™, 35W
6th gen Intel® Core™, 35 ~ 65W
CPU Performance
Security Hardware
Chipset Intel® Q170
Storage 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
3x mSATA (shared by Mini-PCIe socket) (Gen2)
Storage Support
Memory 2 x DDR4 SO-DIMM slot, up to 32GB
Graphics Intel® HD Graphics supports triple independent display

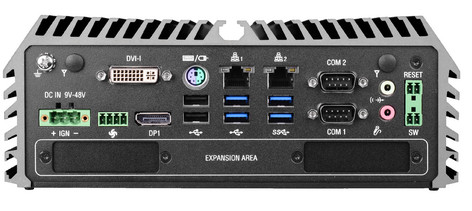

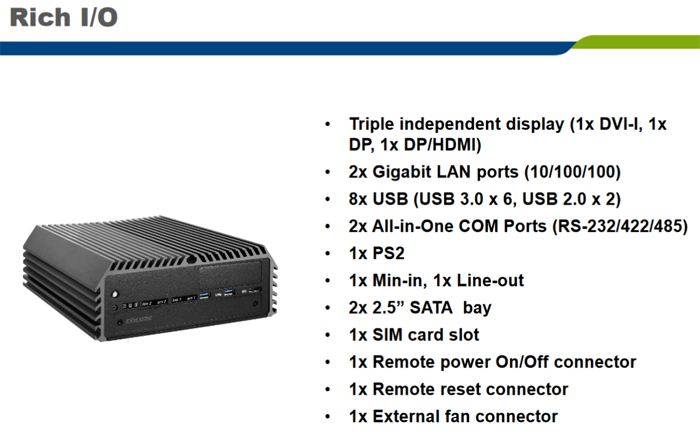

I/O Ports
USB 2.0 2 x USB2.0
USB 3.0 6x USB 3.0

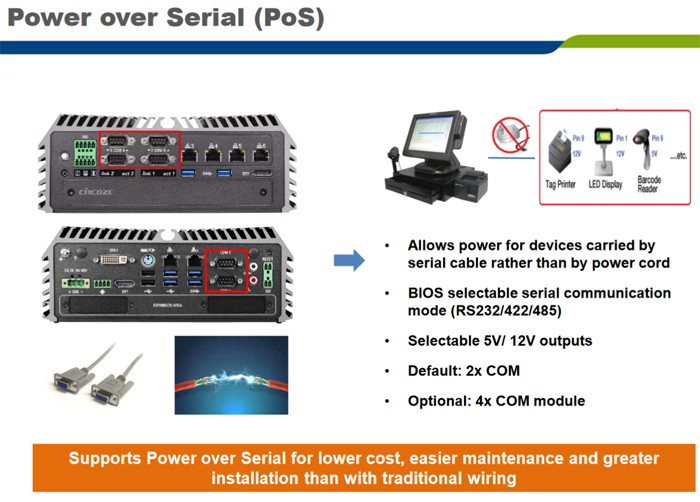

Serial 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
Video 1 x DVI-I, 1 x DP, 1x DP/HDMI

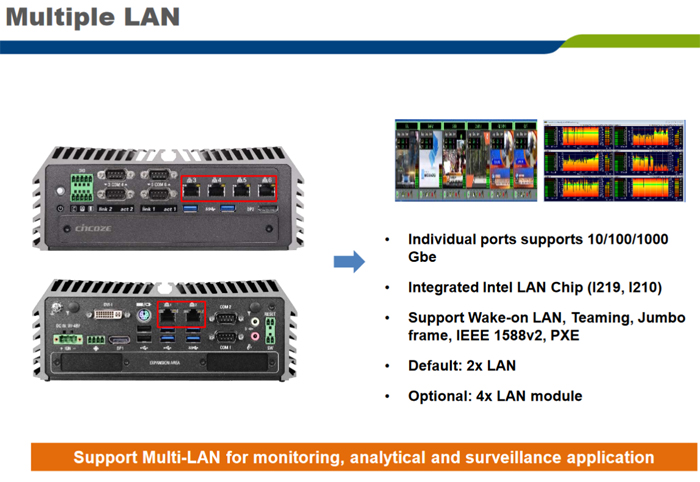

Ethernet 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE) RJ45
Other Ports Mic-in/Line-out
Optical Isolated DIO (with optional CMI module)
(4x DI/4x DO, 10-Pin Terminal Block )
1x Remote Power On/Off Connector
1x Remote Reset Connector
Expansion
Expansion Interface 1x CFM Interface
2x CMI Interfaces
3x Full-size Mini-PCIe Sockets
1x SIM Socket
Operating System
Operating System Windows® 7/8/10, Linux
Power
DC Input / Source Voltage Power Input Voltage 9~48VDC
Operating Temperature
Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
-40°C ~ +50°C with W.T. SSD, 65W TDP CPU
Humidity Range 10% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.7 kg
Dimensions 227 x 261 x 88 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk / Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE, FCC certified, E-Mark,EN50155, EN50121-3-2
