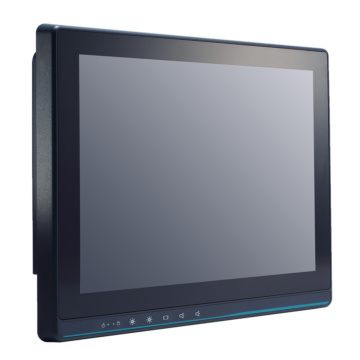

GOT115-319

Tuotenro
GOT115-319-xx
Toimitusaika 21-30pv
  • 15" XGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200
  • 2 GbE LAN, 4 USB and 2 COM
  • IP65-rated plastic front bezel
  • External AT/ATX mode selection switch
  • Easy access storage & RAM design
  • Supports panel mount, wall mount, VESA arm and desktop stand
  • RS-232/422/485 with RI/5V/12V selectable by BIOS
  • Programmable OSD function key
Muokkaa GOT115-319
GOT115-319 Barebone

* Pakolliset kentät

Tuote
GOT115-319
GOT115-319

0,00 EUR

Yhteenveto
    System
    Processor Intel® Pentium® N4200
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1 x 2.5" SATA HDD (9.5 mm height)
    1 x mSATA
    1 x MicroSD card


    Memory 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB


    Display
    Screen Size 15" TFT LCD
    Screen Resolution 1024*768
    Display Ratio 4 ::3
    Contrast Ratio
    Brightness 300 nits
    Viewing Angle 160°/160°
    Number of Colors
    Touch Screen
    Touchscreen Projected Capacitive (Multi-touch)
    5-Wire Resistive (Single-touch)
    I/O Ports
    USB 2.0 2x USB2.0
    USB 3.0 2x USB 3.0
    Serial 1 x RS-232/422/485
    1x RS-232
    Video
    Ethernet 2 x RJ45 GbE
    Other Ports Audio Line-Out
    Operating System
    Operating System Windows 10 IoT Enterprise 64bit
    Power
    DC Input / Source Voltage 9-24V DC
    230V AC-DC Adapter
    Power Management
    Expansion Slots

    1 x M.2 Key E for wireless module
    1 x mPCIE slot
    Multimedia
    Integrated Speakers 2x Speaker
    Operating Temperature
    Operating Temperature 0ºC to 50ºC
    Humidity Range 10% to 90% non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 3.2 kg
    Dimensions 330 x 306 x 50mm
    Enclosure
    Bezel IP65 Front
    Material Plastic , Aluminium
    Mounting VESA100


    Certification
    Certification CE / FCC
    Lisätietoja
    Jäähdytys Fanless
    Näytön koko 15"
