IKARPC-W10A-BT-E3

Toimitusaika 21-30pv
Tuotenro
IKARPC-W10A-BT-E3/2G-R10

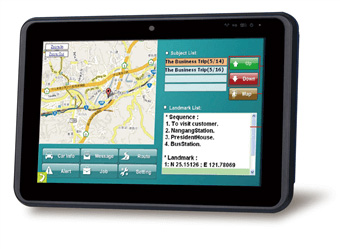

10.1” In-vehicle panel PC, Intel Atom E3826 1.46GHz, 2GB DDR3L, OBD-II, GPS, 2-megapixel camera
Ominaisuudet
* 10.1"" TFT LCD with projected capacitive touchscreen
* Intel® Atom™ E3826 1.46 GHz CPU
* Windows® Embedded Standard 7
* Option HSUPA/GPRS/GSM, Wi-Fi and Bluetooth
* Built-in GPS function
* Built-in OBD-II/CAN 2.0
Pakkaus sisältää
IKARPC-W10A-BT-E3/2G-R10
* Intel Atom E3826 cpu
* 2GB RAM

ACC power cable, 3M
GPS/GSM antenna, 5M , magnetic mount
Spesifikaatiot
Display
10.1" TFT LCD
Resolution: 1280 x 800
Brightness: 350cd/m2
Contrast: 800:1

Touch Screen:
Projected capacitive touch

Processor Core Logic System

CPU:
Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W)

System Chipset:
SoC

System Memory:
On-board 2 GB SDRAM

Ethernet
1 x RJ45 10/100/1000 Base-T Ethernet controller

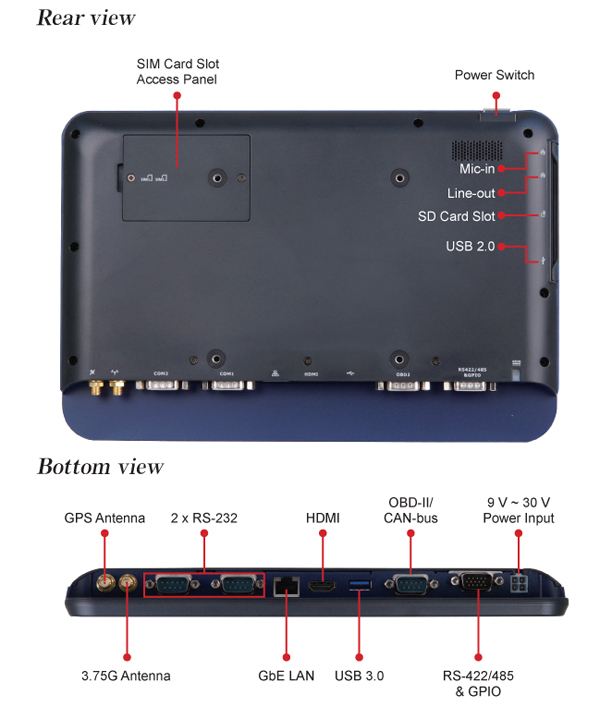

I/O Interface
1 x USB3.0
1 x USB2.0
1 x GbE LAN
2 x DB-9 RS-232
8-bit digital I/O (4-bit input, 4-bit output)
1 x DB-9 CAN-bus/OBD-II
1 x HDMI
1 x Line out, 1 x Mic in
2 x SIM slot

Storage
1 x 2.5" SATA HDD Bay

Expansion
1 x Full-size PCIe Mini (reserved for WWAN module)
1 x Full-size PCIe Mini (reserved for WLAN module)

Power Supply
9-30V DC input

Software Support
Windows Embedded Standard 7

Environment Specifications

Operating Temperature -20°C to 60°C
Storage temperature: -30°C ~ 70°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE/FCC/e-Mark

Mechanical

Construction: ABS/PC plastic
Mounting: 100*100 VESA Mount

Dimension: 277 x 186 x 27mm

Weight: 1.3 kg
